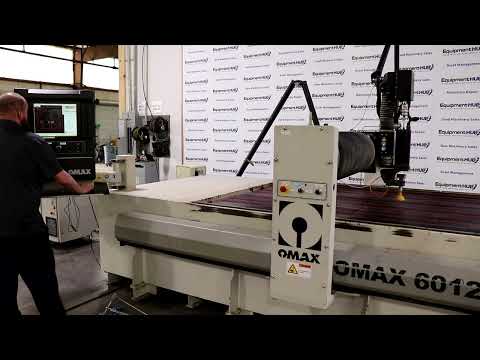

OMAX 60120 CNC Waterjet Cutting Machine
This model was not found in OMAX's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Rapid Traverse
Accuracy
cutting area
maximum thickness
pump
taper compensation
How much does the OMAX 60120 CNC Waterjet Cutting Machine cost?
Estimated price range
Our best estimate for a cnc waterjet cutting in this class — not a quote from OMAX. Configuration moves it a long way.
Overview
The OMAX 60120 CNC Waterjet Cutting Machine is listed with a 60x120 in (1524x3048 mm) cutting area and an OMAX EnduroMax pump of 30 or 50 HP at 55,000 PSI. The 60120 does not appear in OMAX's current lineup. What follows rests on the listed figures, which anyone inspecting a used example should confirm on the machine in front of them.
Two cutting heads are listed: the MAXJET 5 or the TAJ taper-compensating head. TAJ stands for Tilt-A-Jet, described in the table as active taper correction. A waterjet stream leaves a slightly tapered edge, more so as the material gets thicker, and a head that tilts to cancel it is the difference between square walls and walls that need an allowance. With a listed maximum of 150 mm (6 in) on steel, which head is fitted is a practical question and not a detail.
Positioning accuracy is listed at ±0.025 mm (±0.001 in) and rapid traverse at 20 m/min (787 in/min). Pump pressure appears as 55,000 PSI (380 MPa). Abrasive flow is listed as 0.1 – 0.8 kg/min garnet, a range wide enough that garnet use depends heavily on how each cut is set up. Programming and control are through the OMAX Intelli-MAX Software Suite, which is PC-based.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 60x120 in (1524x3048 mm) |
| Maximum Thickness | 150 mm (6 in) on steel |
| Pump | OMAX EnduroMax 30 or 50 HP at 55,000 PSI |
| Positioning Accuracy | ±0.025 mm (±0.001 in) |
| Taper Compensation | Tilt-A-Jet (TAJ) active taper correction |
| Rapid Traverse Rate | 20 m/min (787 in/min) |
| Cutting Head | MAXJET 5 or TAJ taper-compensating head |
| CNC Control | OMAX Intelli-MAX Software Suite (PC-based) |
| Abrasive Flow | 0.1 – 0.8 kg/min garnet |
| Pump Pressure | 55,000 PSI (380 MPa) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Listed positioning accuracy of ±0.025 mm (±0.001 in)
- A TAJ taper-compensating head is among the listed cutting heads
- Rapid traverse listed at 20 m/min (787 in/min)
- Listed cutting area of 60x120 in (1524x3048 mm)
Limitations
- The pump is listed as 30 or 50 HP, and which of the two is fitted has to be established for each machine
- The head row reads MAXJET 5 or TAJ, so taper compensation cannot be assumed
- Maximum thickness is listed as 150 mm (6 in) on steel
Best For
Frequently Asked Questions
01
TAJ is Tilt-A-Jet, which the table describes as active taper correction. The cutting head row lists MAXJET 5 or the TAJ taper-compensating head, so a given machine may have either. If the work involves thick sections with square edges, confirm that the TAJ head is on the machine.
02
The pump row lists an OMAX EnduroMax of 30 or 50 HP at 55,000 PSI, and the pressure row gives 55,000 PSI (380 MPa). The two power ratings cut at different rates, so identify the pump on the machine before estimating job times.
03
The listed maximum thickness is 150 mm (6 in) on steel. The table gives no figure for other materials. Cut quality at that depth also depends on the head, since the MAXJET 5 has no taper compensation listed and the TAJ head does.
04
Abrasive flow is listed as 0.1 – 0.8 kg/min garnet. That is a range, not a single consumption figure, and where a job falls in it depends on the pump and how the cut is set up, so garnet supply should be planned from the jobs the machine will run.
