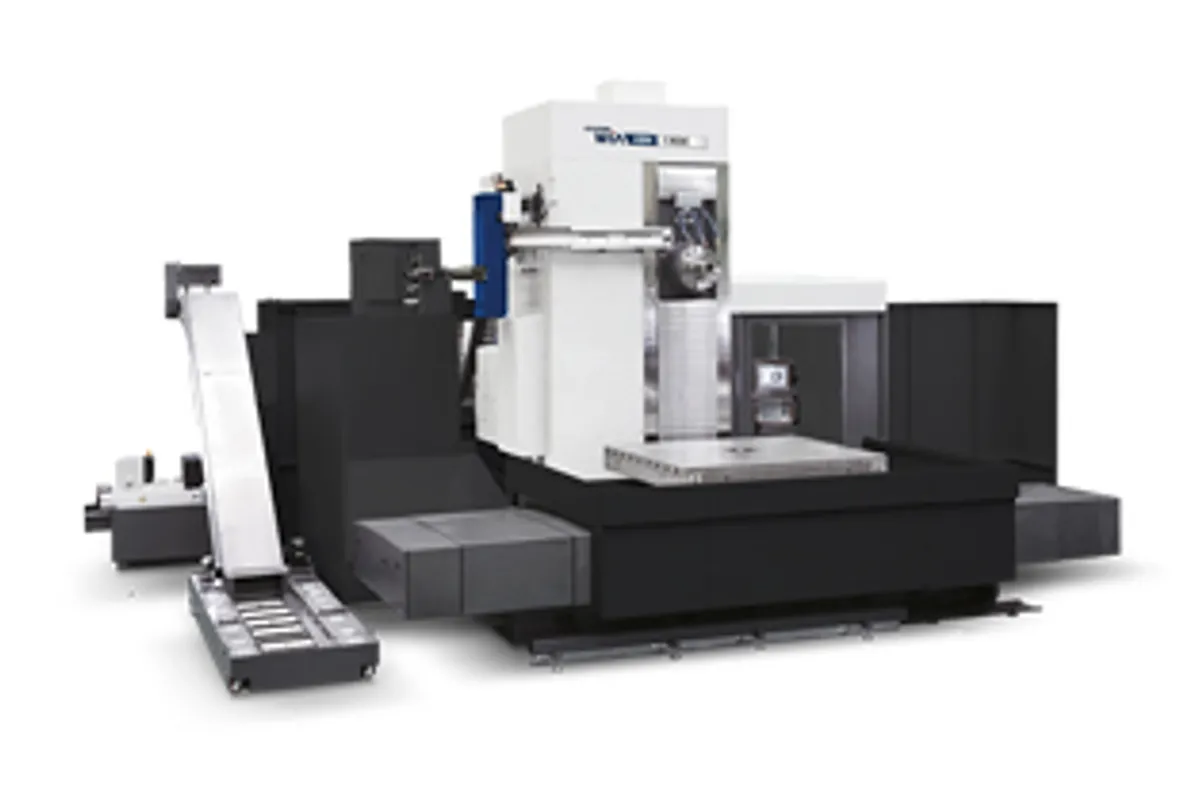

Hyundai WIA KBN1300C
Image: wiamachine.com, Hyundai WIA
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Hyundai WIA KBN1300C cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from Hyundai WIA. Configuration moves it a long way.
Overview
The Hyundai WIA KBN1300C is a CNC boring machine with a 2,000 x 1,800 mm (78.7 x 70.9 in) table, a geared ISO #50 spindle that peaks at 3,377 N·m (2,490.9 ft-lbf), and room for a 15,000 kg (33,069 lb) workpiece. The figures describe a machine for large castings, weldments and housings that need boring and face milling at low speed and high torque.
Standard travels are 3,000 mm (118 in) in X, 2,000 mm (78.7 in) in Y and 1,500 mm (59.1 in) in Z, with a further 700 mm (27.6 in) on the W axis. Hyundai WIA also lists longer optional travels of 4,000 mm (157.5 in), 2,500 mm (98.4 in) and 2,000 mm (78.7 in), written in the same order as the standard X, Y and Z figures. The table load can likewise be raised from 15,000 kg to an optional 20,000 kg (44,092 lb).
The spindle tops out at 2,500 rpm and is driven through a two-step gear drive. It is rated 37 / 30 kW (49.6 / 40.2 hp) with 3,377 / 2,739 N·m (2,490.9 / 2,020.3 ft-lbf) of torque, and a 45 / 37 kW (60.3 / 49.6 hp) motor is optional. Ratings like these are for large-diameter boring bars and face mills run slowly. Small tools that want high surface speed are not what the machine is for.
Box guides carry the axes, and the rapids are moderate to match: 10 / 10 / 10 / 8 m/min (394 / 394 / 394 / 315 ipm) in X, Y, Z and W. The magazine holds 60 tools as standard and 90 as an option.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 2,000 x 1,800 mm (78.7 x 70.9 in) |
| X-Axis Travel | 3,000 mm (118 in) |
| Y-Axis Travel | 2,000 mm (78.7 in) |
| Z-Axis Travel | 1,500 mm (59.1 in) |
| Travel W | 700 mm (27.6 in) |
| Max Spindle Speed | 2,500 rpm |
| Spindle Taper | ISO #50 |
| Spindle Drive | 2 단 기어 (ZF 감속기) |
| Tool Capacity | 60 tools (90 optional) |
| Rapid Traverse Rate | X/Y/Z/W: 10 / 10 / 10 / 8 m/min (394 / 394 / 394 / 315 ipm) |
| Max Table Load | 15,000 kg (33,069 lb) (20,000 kg (44,092 lb) optional) |
| Pallet Size | 2,000×1,800 |
| Travel Axes | X/Y/Z: 3,000 / 2,000 / 1,500 / 700 mm (118.1 / 78.7 / 59.1 / 27.6 in) (4,000 mm (157.5 in), 2,500 mm (98.4 in), 2,000 mm (78.7 in) optional) |
| Spindle Motor Power | 37 / 30 kW (49.6 / 40.2 hp) (45 / 37 kW (60.3 / 49.6 hp) optional) |
| Spindle Torque | 3,377 / 2,739 N·m (2,490.9 / 2,020.3 ft-lbf) |
| Slide Type | BOX GUIDE |
Specifications sourced from wiamachine.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Geared spindle rated 3,377 / 2,739 N·m (2,490.9 / 2,020.3 ft-lbf) at 37 / 30 kW (49.6 / 40.2 hp)
- 2,000 x 1,800 mm (78.7 x 70.9 in) table carrying 15,000 kg (33,069 lb), or 20,000 kg (44,092 lb) with the option
- Travels of 3,000 mm (118 in), 2,000 mm (78.7 in) and 1,500 mm (59.1 in) in X, Y and Z, plus a 700 mm (27.6 in) W axis
- 60-tool magazine as standard, with 90 tools optional
- Optional 45 / 37 kW (60.3 / 49.6 hp) spindle motor
- Box guides on a machine intended for heavy, low-speed cuts
Limitations
- Top spindle speed is 2,500 rpm, which rules out efficient small-tool work
- Rapids are 10 m/min (394 ipm) on X, Y and Z and 8 m/min (315 ipm) on W, so long positioning moves take time
- The longer travels, the 20,000 kg (44,092 lb) table load, the 45 / 37 kW (60.3 / 49.6 hp) motor and the 90-tool magazine are all options
Best For
Frequently Asked Questions
01
3,000 mm (118 in) in X, 2,000 mm (78.7 in) in Y, 1,500 mm (59.1 in) in Z and 700 mm (27.6 in) in W. Optional travels of 4,000 mm (157.5 in), 2,500 mm (98.4 in) and 2,000 mm (78.7 in) are listed in the same X, Y, Z order. Confirm with the quotation which extended axes are included, because the table gives them as a group.
02
15,000 kg (33,069 lb) as standard on the 2,000 x 1,800 mm (78.7 x 70.9 in) table. A 20,000 kg (44,092 lb) rating is listed as an option. Fixtures, angle plates and risers count toward the limit, so add them to the casting weight before deciding whether the option is needed.
03
37 / 30 kW (49.6 / 40.2 hp) and 3,377 / 2,739 N·m (2,490.9 / 2,020.3 ft-lbf), with a maximum of 2,500 rpm through a two-step gear drive. A 45 / 37 kW (60.3 / 49.6 hp) motor is optional. The taper is ISO #50.
04
The magazine holds 60 tools, or 90 with the option. Rapids are 10 m/min (394 ipm) in X, Y and Z and 8 m/min (315 ipm) in W, on box guides. On a machine with 3,000 mm (118 in) of X, crossing the full stroke at that rate is a noticeable part of the cycle, so group operations by position where the process allows.
