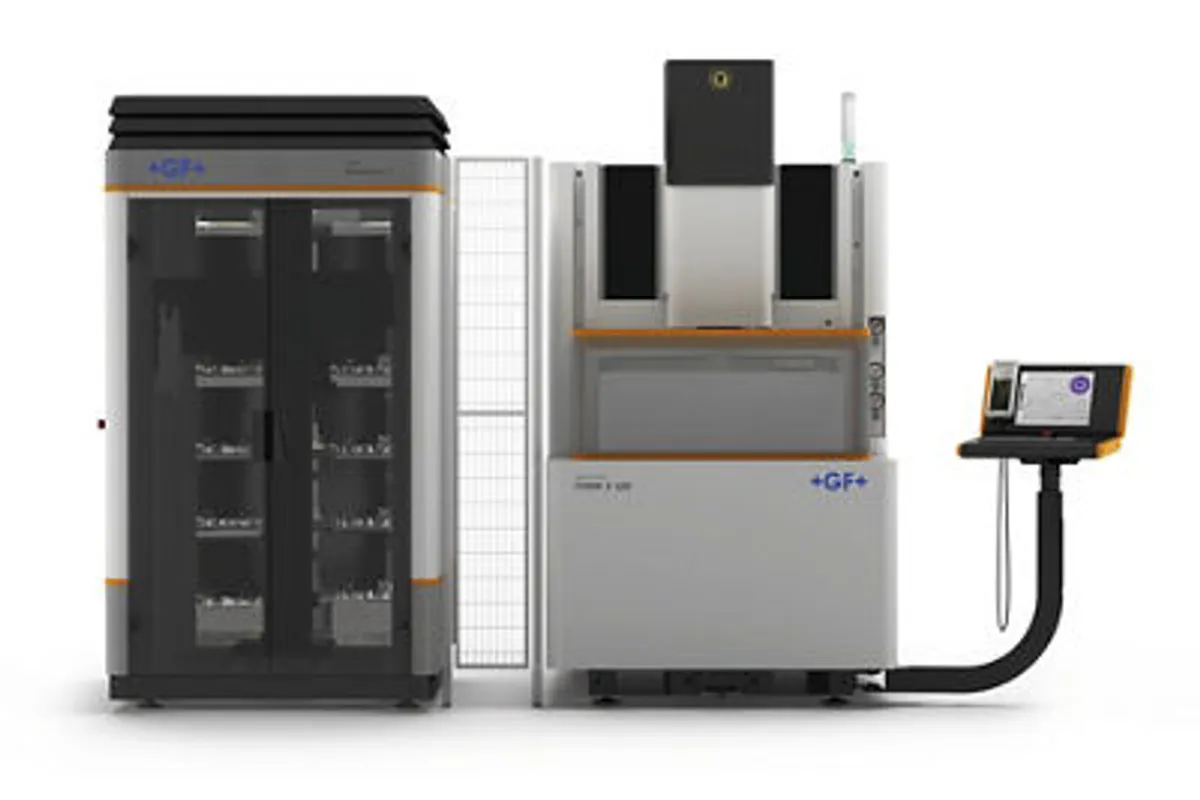

GF AgieCharmilles FORM X
Key Specifications
X Travel
Y Travel
Z Travel
Table Size
max workpiece dimensions
max workpiece weight
Overview
The GF AgieCharmilles FORM X is the compact entry-level sinker EDM in the X-series lineup, positioned between the economy FORM E and the Swiss-made FORM S. With 350 x 250 x 250 mm (13.8 x 9.8 x 9.8 in) of X/Y/Z travel, it covers the same compact envelope as the FORM E 350 but with a more capable generator and enhanced features.
The ISPG generator delivers 80A peak current with improved spark strategies compared to the FORM E version. Surface finish reaches Ra 0.10 um (4 uin), and the generator includes better electrode wear compensation algorithms that extend electrode life on production runs. GammaTEC finishing technology is available as an option.
The table accepts workpieces up to 800 x 500 x 265 mm (31.5 x 19.7 x 10.4 in) and 400 kg (882 lb), an increase over the FORM E 200 kg capacity. A 4-position Linear Tool Changer handles multi-electrode sequences, and System 3R automation integration is available.
Four-axis simultaneous interpolation with C-axis enables orbital burning and contour machining. The AC FORM HMI provides intuitive job setup and scheduling. Positioning resolution is 50 nm.
The machine weighs approximately 2,500 kg (5,512 lb) without dielectric, maintaining a compact footprint suitable for smaller shops. Rapid traverse is 4,000 mm/min on X/Y and 6,000 mm/min on Z.
New FORM X machines price between $75,000 and $110,000. Used machines from 2017-2022 trade in the $35,000-$65,000 range. The FORM X competes with entry-level Sodick and Mitsubishi sinker EDMs.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 350 mm (13.8 in) |
| Y-Axis Travel | 250 mm (9.8 in) |
| Z-Axis Travel | 250 mm (9.8 in) |
| Table Size | 500 x 350 mm (19.7 x 13.8 in) |
| Max Workpiece Dimensions | 800 x 500 x 265 mm (31.5 x 19.7 x 10.4 in) |
| Max Workpiece Weight | 400 kg (882 lb) |
| Max Electrode Weight | 50 kg (110 lb) |
| Dielectric Fluid Volume | 300 liters (79 gal) |
| Generator | ISPG (80A peak) |
| Best Surface Finish | Ra 0.10 um (4 uin) |
| Positioning Resolution | 50 nm |
| Rapid Traverse Xy | 4,000 mm/min (157 ipm) |
| Rapid Traverse Z | 6,000 mm/min (236 ipm) |
| Tool Changer | 4-position LTC (Linear Tool Changer) |
| C Axis | Standard (full 360-degree rotation) |
| Machine Weight | 2,500 kg (5,512 lb) without dielectric |
| CNC Control | AC FORM HMI |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Improved ISPG generator with better electrode wear compensation extends electrode life on production runs
- 400 kg workpiece capacity is double the FORM E 200 kg limit, handling more mold and die work
- Compact footprint and 2,500 kg weight make installation straightforward in smaller facilities
- Same intuitive AC FORM HMI as the entire FORM range with no retraining needed
- Ra 0.10 um surface finish handles the majority of injection mold cavity work
- Competitive pricing undercuts comparable Makino and Sodick sinker EDMs by $10,000-$20,000
Limitations
- Machine tool portion manufactured in China, with only the generator and controls being Swiss
- 80A peak current limits metal removal rate on heavy roughing applications compared to 100A+ machines
- 4-position tool changer is basic compared to higher-end machines with 16+ positions
- 250 mm Z-travel limits deep-cavity capability; shops doing deep-rib work should consider the FORM X 600
- 350 mm X-travel is identical to the FORM E, so the upgrade justification is in generator quality and capacity, not envelope
Best For
Frequently Asked Questions
01
New FORM X machines price between $75,000 and $110,000. Used machines from 2017-2022 trade in the $35,000-$65,000 range.
02
The FORM X offers improved ISPG generator with better electrode wear compensation, 400 kg workpiece capacity (vs 200 kg), and enhanced software features. Travel dimensions are identical at 350 x 250 x 250 mm.
03
The FORM S is fully Swiss-made with a more advanced generator, higher peak current, tighter accuracy, and better surface finish capability. The FORM X is the affordable option. Expect $40,000-$60,000 less for the FORM X.
04
Yes. Mix-material technology supports automated graphite-to-copper sequences. The ISPG optimizes for each material type automatically.
05
Yes. The 4-position LTC, AC FORM HMI scheduling, and System 3R compatibility enable unattended multi-electrode burning overnight.
