Citizen Cincom L32-XII ATC
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

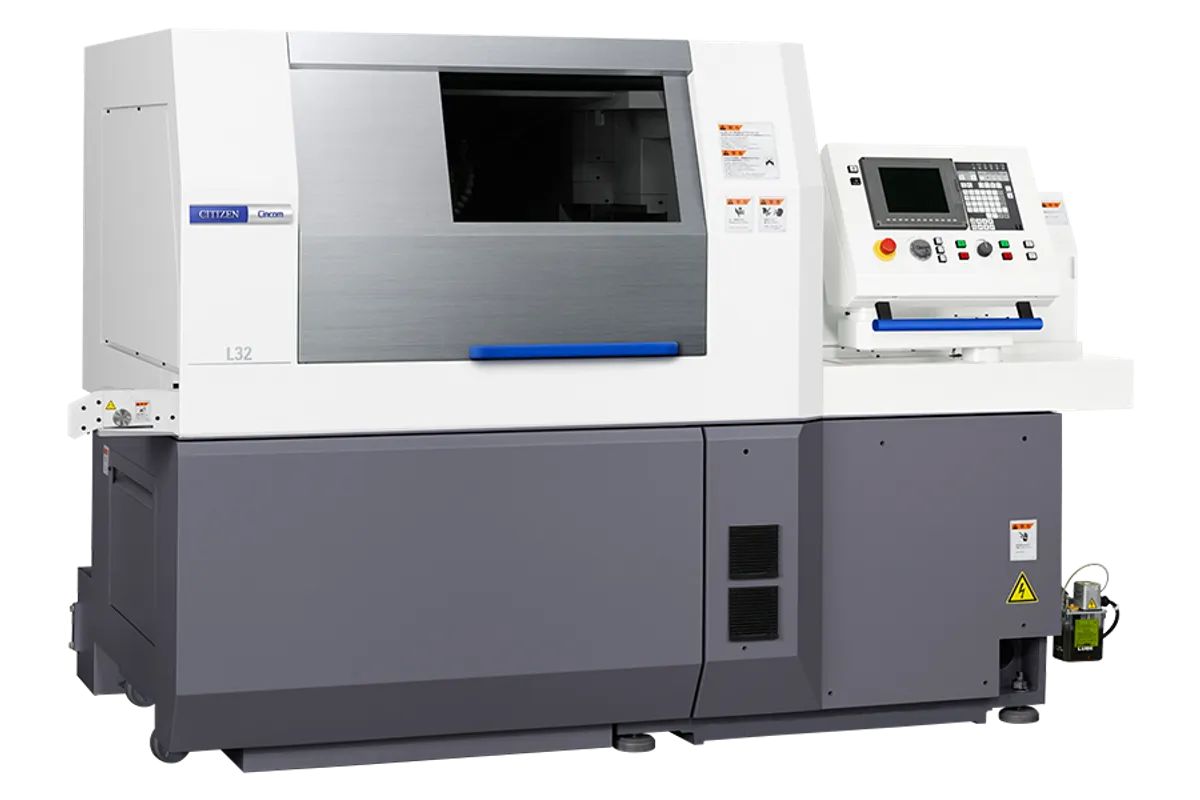

Image: citizenmachinery.co.uk, Citizen Machinery
Key Specifications
Max Spindle
Rapid Traverse
max bar capacity
max machining diameter
max machining length
main spindle speed
How much does the Citizen Cincom L32-XII ATC cost?
Estimated price range
Our best estimate for a swiss-type lathe in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Citizen Cincom L32-XII ATC is a 32 mm sliding-headstock lathe with an automatic tool changer and a programmable B-axis, listed with an 8,000 rpm main spindle and a 2,900 kg (6,393 lbs) weight. It is not in Citizen's current lineup, and no current Citizen product page carries its table, so everything below is the listed figures only.
The tool changer is what sets this machine apart. Its tooling spindle is listed at 12,000 rpm on a 2.2 kW motor, taking JBS-15T holders with ER16 collets and tools up to 30 mm in outside diameter, with 13 tools in the ATC and a tool change time of 4.0 sec. That allows more milling and drilling operations than fixed rotary positions alone, at the cost of a pause for every change.
The rest of the listing describes the usual 32 mm platform: front drilling to 12 mm and M12 tapping, a 32 mm back spindle chuck that drills 10 mm and taps M10 with 80 mm of workpiece protrusion, and LFV chip breaking on both spindles. Several rows disagree with each other, among them the spindle bore, the number of mountable tools and the power consumption, so confirm those on the machine itself.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 32 mm (1.26 in) |
| Max Machining Diameter | 32 mm (1.26 in) |
| Max Machining Length | 200 mm (7.87 in) |
| Main Spindle Speed | 8,000 RPM |
| Main Spindle Power | 3.7 / 5.5 / 7.5 kW (5 / 7.4 / 10 HP) |
| Back Spindle Speed | 10,000 RPM |
| Back Spindle Power | 1.5 / 2.2 / 3.7 kW (2 / 3 / 5 HP) |
| Spindle Bore | 38 mm (1.50 in) |
| Number of Axes | 12-axis + programmable B-axis |
| Number of Tools | 34 main + 13 ATC |
| Rapid Traverse Rate | 32 m/min |
| Guide Bushing | Yes / Guide-bushless option |
| Lfv Chip Breaking | Yes (simultaneous dual-spindle) |
| Power Consumption | 9.5 kVA rated / 5.0 kVA average |
| Machine Dimensions | 2,450 x 1,650 x 1,850 mm (96.5 x 65 x 72.8 in) |
| Machine Weight | 2,900 kg (6,393 lbs) |
| CNC Control | Mitsubishi Meldas (Citizen software) |
| ATC Spindle Speed | 12,000 RPM |
| ATC Motor | 2.2 kW |
| ATC Tool Holder | JBS-15T |
| ATC Collet | ER16 |
| ATC Max Tool OD | 30 mm |
| Tool Change Time | 4.0 sec |
| Max Front Drilling Diameter | 12 mm Dia. |
| Max Front Tapping Diameter | M12 |
| Spindle Through Hole Diameter | 39 mm Dia. |
| Max Chuck Diameter of The Back Spindle | 32 mm Dia. |
| Max Protrusion Length of The Back Spindle Workpiece | 80 mm |
| Max Protrusion Length | 150 mm |
| Max Drilling Diameter for The Back Spindle | 10 mm Dia. |
| Max Tapping Diameter for The Back Spindle | M10 |
| Gang Rotary Tool | 4 – 6 |
| Max Tapping Diameter | M6 |
| Max Spindle Speed | Max. 6,000 min⁻¹ (Rating: 3,000 min⁻¹) |
| Front Rotary Tool 2 | Max. drilling diameter |
| Number of Tools to Be Mounted Max | 19 – 30 |
| Gang Turning Tool | 6 |
| Front Drilling Tool | 4 – 9 |
| Tool Size | Gang turning tool |
| Sleeve | 25.4 mm Dia. |
| Chuck and Bushing | Main spindle collet chuck |
| Rotary Tool Collet Chuck | ER11, ER16 |
| Chuck for Drill Sleeves | ER11, ER16 |
| Rapid Feed Rate | All axes (except Y2) |
| Motors | Spindle drive |
| Gang Tool Post Rotary Tool Drive | 1.0 kW |
| Front Rotary Tool Drive 2 | 1.0 kW |
| Coolant Oil | 0.4 kW |
| Lubricating Oil | 0.003 kW |
| Rated Power Consumption | 13.2 KVA |
| Full Load Current | 36 A |
| Main Breaker Capacity | 60 A |
| Air Pressure and Air Flow Rate for Pneumatic Devices | 0.5 MPa, 64.2 NL/min |
| Centre Height | 1,050 mm |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Automatic tool changer with 13 tools, 12,000 rpm tooling spindle and 2.2 kW motor
- Programmable B-axis listed alongside the ATC
- 32 mm bar capacity with M12 tapping at the front
- Back spindle takes 32 mm and allows 80 mm of workpiece protrusion
Limitations
- Not in Citizen's current lineup, and no current Citizen product page carries its table
- ATC tools are limited to 30 mm outside diameter and change in 4.0 sec
- Spindle bore, tool count and power consumption are listed with conflicting values
Best For
Frequently Asked Questions
01
The listed figures give 13 ATC tools in JBS-15T holders with ER16 collets, a maximum tool outside diameter of 30 mm, a 12,000 rpm tooling spindle on a 2.2 kW motor and a tool change time of 4.0 sec.
02
No. It is not in Citizen's current lineup, and no current Citizen product page carries its table, so its figures cannot be confirmed against the manufacturer. Several of the listed rows also conflict with each other.
03
Bar capacity is 32 mm and the main spindle runs to 8,000 rpm. The back spindle chuck takes 32 mm, drills up to 10 mm and taps up to M10, with up to 80 mm of the workpiece protruding for back machining.
04
The spindle bore, the number of mountable tools and the power consumption, because each is listed with two values. The listed electrical figures include a 60 A main breaker and the air supply is given as 0.5 MPa.
