Bodor T-Series 12kW Fiber Laser
Key Specifications
Accuracy
cutting area
laser power
laser type
max cutting thickness steel
positioning speed
How much does the Bodor T-Series 12kW Fiber Laser cost?
Estimated price range
Our best estimate for a cnc laser cutting machine in this class — not a quote from Bodor Laser. Configuration moves it a long way.
Overview
The Bodor T-Series 12kW Fiber Laser is listed as a 12,000 W sheet cutting machine with a 3,000 x 1,500 mm standard cutting area, larger formats available, and a machine weight of approx. 14,000 kg. The listed figures are not confirmed by the maker and should be checked against the machine on offer.
This is a single-power listing. Every row describes the 12,000 W build, so the thickness figures need no qualifier: 40 mm in mild steel, 30 mm in stainless and 25 mm in aluminum. The source is listed as IPG or Raycus.
Weight is the row that shapes the installation. Approx. 14,000 kg calls for a floor survey and heavy rigging well ahead of arrival. Positioning speed is listed at 120 m/min and positioning accuracy at ±0.03 mm, and the control is a Bodor BCL high-power edition with touchscreen HMI. The table gives no electrical supply, assist gas demand or sheet weight limit, all of which matter at this power and should be requested.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 3,000 x 1,500 mm (standard); larger formats available |
| Laser Power | 12,000 W (fiber, IPG or Raycus) |
| Laser Type | Fiber laser |
| Max Cutting Thickness Steel | 40 mm (mild steel); 30 mm (stainless); 25 mm (aluminum) |
| Positioning Speed | 120 m/min |
| Positioning Accuracy | ±0.03 mm |
| Control System | Bodor BCL high-power edition with touchscreen HMI |
| Machine Weight | Approx. 14,000 kg |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 40 mm mild steel, 30 mm stainless and 25 mm aluminum listed at 12,000 W
- 120 m/min positioning speed with ±0.03 mm positioning accuracy
- Formats larger than the 3,000 x 1,500 mm standard are listed as available
Limitations
- Approx. 14,000 kg machine weight
- The listed figures are unconfirmed by the maker
- Only one power level, 12,000 W, is listed
Best For
Frequently Asked Questions
01
The listed maximums are 40 mm in mild steel, 30 mm in stainless and 25 mm in aluminum, all with the 12,000 W fiber source. These are upper limits; edge quality and speed at those thicknesses should be shown on a sample.
02
Machine weight is listed at approx. 14,000 kg and the standard cutting area is 3,000 x 1,500 mm, with larger formats available. No footprint, electrical supply or gas requirement is listed, so those have to come from the installation documents.
03
The source is listed as 12,000 W fiber, IPG or Raycus. The control is a Bodor BCL high-power edition with touchscreen HMI. Positioning speed is 120 m/min and positioning accuracy ±0.03 mm.
More from Bodor Laser
Other CNC Laser Cutting Machines
Durma HD-TC 60220
EMAG ELC 600
Machitech Fiber Prime 5x10

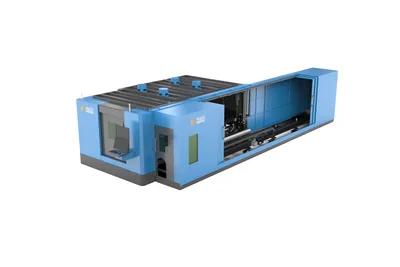

Haco HFL 6020 CEG
