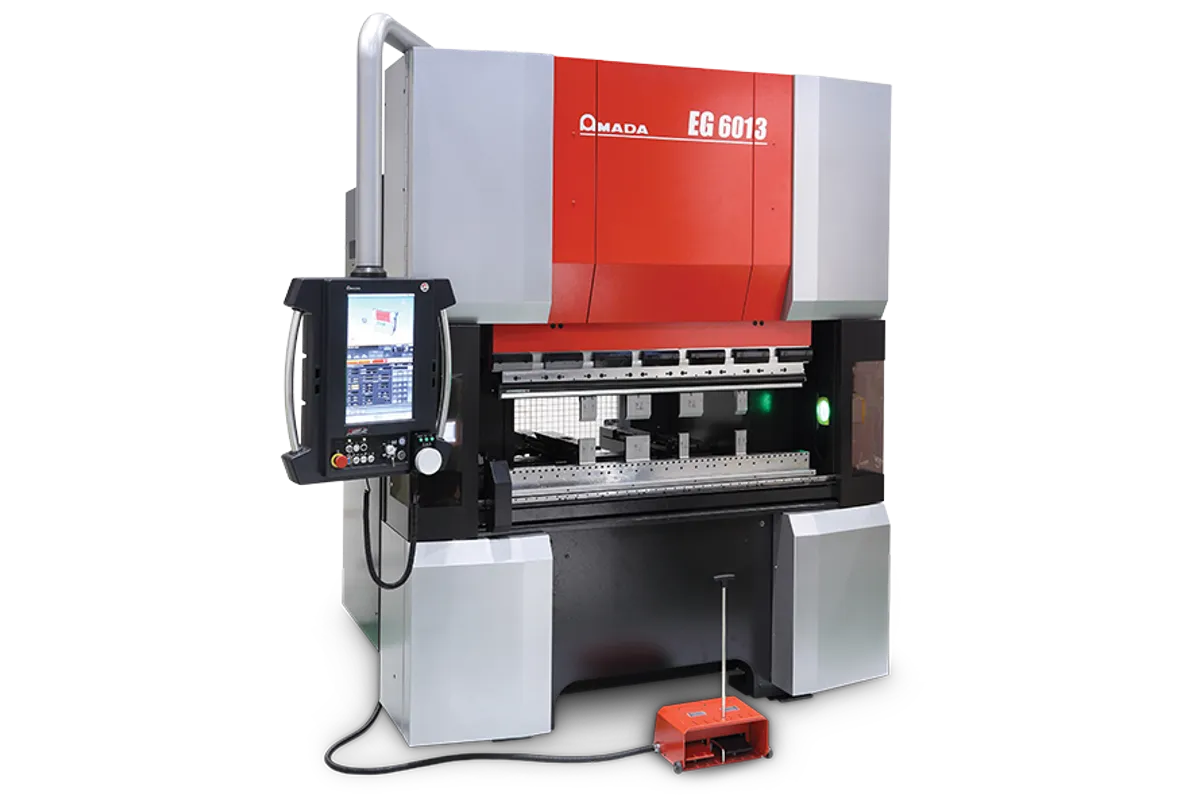

Amada EG-6013

Est. $80,000 - $120,000 (new) Updated 2026-10-03

Image: amada.com, Amada

Key Specifications

press capacity

600 kN / 60 metric tons (67 US tons)

press beam length

1,300 mm (51.2 in)

stroke

150 mm (5.9 in)

open height

335 mm (13.2 in)

throat depth

215 mm (8.5 in)

approach speed

100 mm/sec (3.9 in/sec)

How much does the Amada EG-6013 cost?

Estimated price range

Est.$80,000 - $120,000 (new)

Our best estimate for a cnc press brake in this class — not a quote from Amada. Configuration moves it a long way.

Overview

For bends up to 1,300 mm (51.2 in) long, the Amada EG-6013 lists 600 kN of press capacity, equal to 60 metric tons (67 US tons), from a dual AC servo electric drive with no hydraulics. Treat what follows as the listed figures and have them confirmed in a quotation.

Start with tooling space, because it is the tighter constraint on a machine of this size. Open height is 335 mm (13.2 in) and stroke is 150 mm (5.9 in). The throat is 215 mm (8.5 in) deep, which sets how much of a blank wider than the frame opening can sit to the side of the bend line.

Ram motion is listed in three stages: 100 mm/sec (3.9 in/sec) approach, 10 mm/sec (0.4 in/sec) pressing and 120 mm/sec (4.7 in/sec) return. Pressing runs at a tenth of the approach speed, so on small flanges most of the cycle is fast travel, and keeping the programmed opening short saves more time than anything else. Ram repeatability is ±0.001 mm (±0.00004 in). A 4-axis backgauge positions the part, and programming is done at the AMNC 3i control on a 15.6-inch touchscreen.

The services row reads 200V and 12 kVA, and the machine weighs 3,600 kg (7,937 lb) with a noise level of < 70 dB. Among Amada's other press brakes, the EGB 8025e is listed at 7200 kg (approximate) and uses the AMNC 4ie control, a different control from the AMNC 3i listed here.

Full Specifications

Parameter	Value
Press Capacity	600 kN / 60 metric tons (67 US tons)
Press Beam Length	1,300 mm (51.2 in)
Stroke	150 mm (5.9 in)
Open Height	335 mm (13.2 in)
Throat Depth	215 mm (8.5 in)
Approach Speed	100 mm/sec (3.9 in/sec)
Pressing Speed	10 mm/sec (0.4 in/sec)
Return Speed	120 mm/sec (4.7 in/sec)
Ram Repeatability	±0.001 mm (±0.00004 in)
Drive System	Dual AC servo electric (no hydraulics)
CNC Control	AMNC 3i (15.6-inch touchscreen)
Backgauge Axes	4-axis
Power Requirement	200V, 12 kVA
Machine Weight	3,600 kg (7,937 lb)
Noise Level	< 70 dB

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

600 kN, or 60 metric tons (67 US tons), across a 1,300 mm (51.2 in) beam
No hydraulics: the drive is listed as dual AC servo electric
Open height of 335 mm (13.2 in) and a 215 mm (8.5 in) throat
Ram repeatability listed at ±0.001 mm (±0.00004 in) with a 4-axis backgauge
3,600 kg (7,937 lb) and a 200V, 12 kVA supply

Limitations

Bend length is capped by the 1,300 mm (51.2 in) beam
Stroke is 150 mm (5.9 in), which limits how far the ram can open for tall parts
The pressing stage is listed at 10 mm/sec (0.4 in/sec), a tenth of the approach speed

Best For

Parts up to 1,300 mm (51.2 in) long within 600 kN Tooling setups that fit a 335 mm (13.2 in) open height Precision bending that relies on ±0.001 mm (±0.00004 in) ram repeatability Workshops that want a brake with no hydraulic system

Frequently Asked Questions

01 How long a part can the EG-6013 bend, and with what force?

The press beam is listed at 1,300 mm (51.2 in) and the press capacity at 600 kN, which the table also states as 60 metric tons (67 US tons). Whether a given material and thickness fits depends on the die opening, so check a bend force chart against 600 kN.

02 What are the open height, stroke and throat depth of the EG-6013?

Open height is 335 mm (13.2 in), stroke is 150 mm (5.9 in) and throat depth is 215 mm (8.5 in). These three rows decide which punch and die heights fit and how a wide blank sits beside the frame.

03 What electrical supply does the EG-6013 need?

The listed power requirement is 200V and 12 kVA. The machine weight is 3,600 kg (7,937 lb) and the listed noise level is < 70 dB. There is no hydraulic system, as the drive is dual AC servo electric.

04 What control and backgauge does the EG-6013 have?

The control is listed as the AMNC 3i with a 15.6-inch touchscreen, and the backgauge as 4-axis. The table does not name the individual backgauge axes, so confirm them if a part depends on a particular one.
