TGS TGS-CL-6020

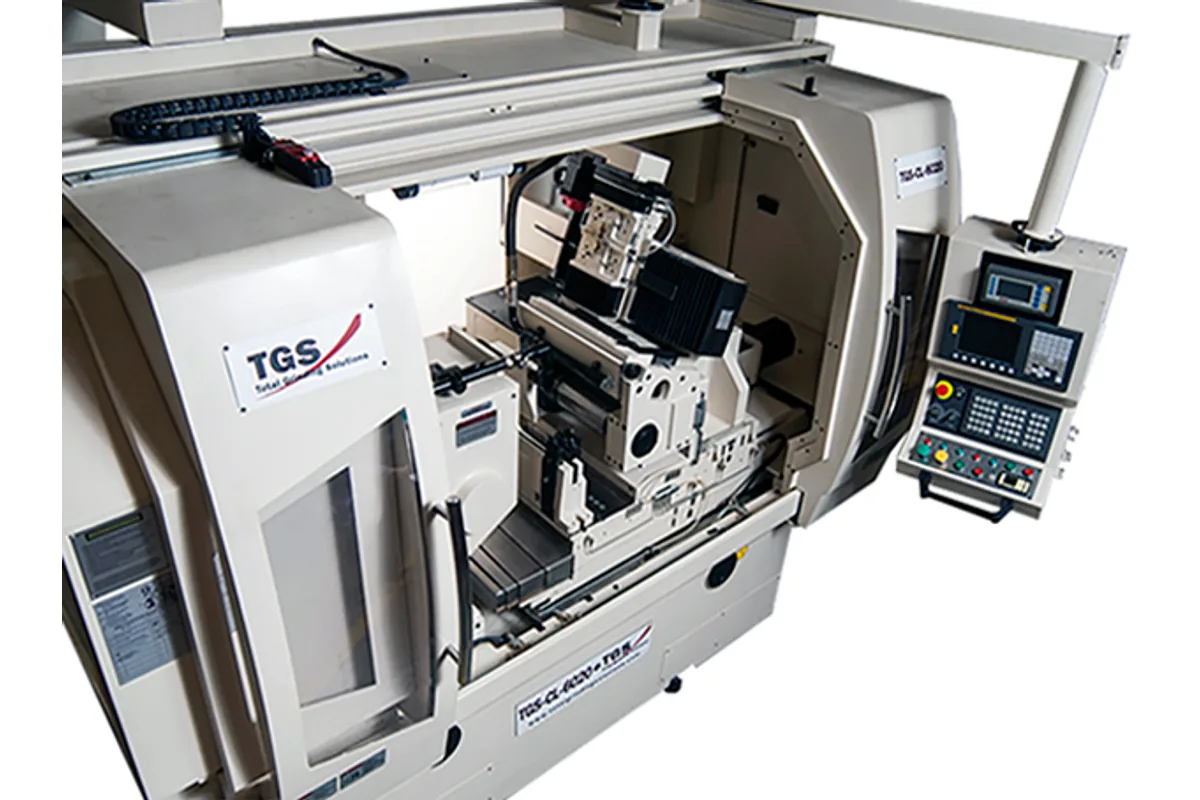

Image: totalgrindingsolutions.com, TGS
Key Specifications
Spindle Power
workpiece diameter range
workpiece length
wheel center height from floor
wheel size
grinding wheel min diameter
How much does the TGS TGS-CL-6020 cost?
Price estimate
We do not have a price for the TGS TGS-CL-6020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TGS-CL-6020 is a CNC centerless grinder for parts from 3 – 120 mm (0.1 – 4.7 in) in diameter, built around a grinding wheel of 610 x 200 x 304.8 mm (24.0 x 7.9 x 12.0 in) and a 22 kW (29.5 hp) wheel motor. It is the one model for which Total Grinding Solutions publishes a specification table, and at 8,000 kg (17,637 lb) it is a production machine.
Both wheels are dressed under CNC. The grinding wheel has a two-axis dresser with a 250 mm (9.8 in) traverse stroke and a 150 mm (5.9 in) in-feed stroke, each with a least count of 0.001 mm, and TGS lists a two-axis CNC dresser for the regulating wheel as well. That matters for profiled infeed work, where the wheel form is the part form. The in-feed slide itself has 150 mm (5.9 in) of stroke, the same 0.001 mm least count and ±1° of swivel.
On the regulating side the wheel is 350 x 203 x 152 mm (13.8 x 8.0 x 6.0 in), driven through a worm gear over 10 – 300 rpm. Its motor row reads 2.2 kW (3.0 hp) / 1,500 rpm. The wheel tilts for thru-feed grinding, and its spindle has an outboard bearing support. The bed is cast iron, heat treated and stress relieved, with what TGS calls a honeycomb structure. A 30 kW (40.2 hp) grinding wheel motor is the listed option.
Fanuc is the standard control; Siemens, Allen-Bradley and Mitsubishi are optional. Balancing, coolant, mist collection, gaging and automation appear under machine options, so none of them should be assumed in a base machine. Plan the floor for 3,700 x 3,750 x 2,300 mm (145.7 x 147.6 x 90.6 in). The listed work length is 200 mm (7.9 in), which matches the wheel width, so longer bars are a thru-feed job with the long bar attachments TGS offers as an option.
Full Specifications
| Parameter | Value |
|---|---|
| Workpiece Diameter Range | 3 – 120 mm (0.1 – 4.7 in) |
| Workpiece Length | 200 mm (7.9 in) |
| Wheel Center Height From Floor | 1,100 mm (43.3 in) |
| Wheel Size | 610 x 200 x 304.8 mm (24.0 x 7.9 x 12.0 in) (O.D. x width x I.D.) |
| Grinding Wheel Min Diameter | 390 mm (15.4 in) |
| Wheel Surface Speed | 33 (45) m/sec |
| Spindle Motor Power | 22 kW (29.5 hp) |
| Spindle Power Optional | 30 kW (40.2 hp) |
| Regulating Wheel Size | 350 x 203 x 152 mm (13.8 x 8.0 x 6.0 in) (O.D. x width x I.D.) |
| Regulating Wheel Min Diameter | 270 mm (10.6 in) |
| Regulating Wheel Speed | 10 – 300 rpm |
| Regulating Wheel Tilt | -3° – +5° |
| Regulating Wheel Motor | 2.2 kW (3.0 hp) / 1,500 rpm |
| Infeed Stroke | 150 mm (5.9 in) |
| Infeed Least Count | 0.001 mm |
| Infeed Slide Swivel | ±1° |
| Infeed Servo Motor Torque | 18 / 22 Nm (13.3 / 16.2 lb-ft) |
| Traverse Dresser Stroke | 250 mm (9.8 in) |
| Traverse Dresser Least Count | 0.001 mm |
| Traverse Dresser Servo Motor Torque | 18 / 22 Nm (13.3 / 16.2 lb-ft) |
| Infeed Dresser Stroke | 150 mm (5.9 in) |
| Infeed Dresser Least Count | 0.001 mm |
| Infeed Dresser Servo Motor Torque | 18 / 22 Nm (13.3 / 16.2 lb-ft) |
| CNC Control | Fanuc (standard); Siemens / Allen-Bradley / Mitsubishi (optional) |
| Machine Dimensions | 3,700 x 3,750 x 2,300 mm (145.7 x 147.6 x 90.6 in) (L x B x H) |
| Machine Weight | 8,000 kg (17,637 lb) |
| Machine Options | Balancing systems; coolant systems; fire supression systems; long bar attachments; mist collection systems; multiple automatic gaging systems; multiple automation configurations |
Specifications sourced from totalgrindingsolutions.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Two-axis CNC dressers on both the grinding wheel and the regulating wheel
- 22 kW (29.5 hp) grinding wheel motor as standard, with 30 kW (40.2 hp) optional
- In-feed slide and both grinding wheel dresser slides have a least count of 0.001 mm
- Takes parts from 3 – 120 mm (0.1 – 4.7 in) in diameter
- Standard Fanuc control, with Siemens, Allen-Bradley or Mitsubishi as options
- Regulating wheel spindle with outboard bearing support and a 10 – 300 rpm speed range
Limitations
- Listed work length is 200 mm (7.9 in); longer parts depend on thru-feed grinding and the optional long bar attachments
- A heavy machine at 8,000 kg (17,637 lb), standing 2,300 mm (90.6 in) high
- Balancing, coolant, mist collection and automatic gaging systems are machine options
- TGS publishes one size only; its specification table has no smaller or larger model to step to
Best For
Frequently Asked Questions
01
The table gives a diameter range of 3 – 120 mm (0.1 – 4.7 in) and a length of 200 mm (7.9 in). TGS lists long bar attachments among the machine options, and roller or belt conveyors for rods and bars among its automation options.
02
Fanuc is standard. The control system rows of the table list Siemens, Allen-Bradley and Mitsubishi as optional. The in-feed slide and both grinding wheel dresser slides are driven by feed servo motors, and each has a least count of 0.001 mm.
03
The grinding wheel is 610 x 200 x 304.8 mm (24.0 x 7.9 x 12.0 in), O.D. x width x I.D., with a minimum diameter of 390 mm (15.4 in). The regulating wheel is 350 x 203 x 152 mm (13.8 x 8.0 x 6.0 in) with a minimum diameter of 270 mm (10.6 in).
04
Machine size is 3,700 x 3,750 x 2,300 mm (145.7 x 147.6 x 90.6 in), L x B x H, and the weight is 8,000 kg (17,637 lb). The wheel center is 1,100 mm (43.3 in) above the floor, which is the figure to give anyone designing loading equipment around it.
05
TGS lists fully automated load/unload for infeed or throughfeed grinding, a gantry style load/unload system, a vibratory bowl feeder for small workpieces and a roller/belt conveyor for rods and bars. The specification table adds multiple automation configurations and multiple automatic gaging systems under machine options.
