Key Specifications

max bar capacity

32 mm (1.26 in)

max machining diameter

32 mm (1.26 in)

number of axes

Up to 10 (including Y1, Y2, C1, C2)

guide bushing

SR-32J: Yes / SR-32JN: Non-guide bushing

power consumption

12 kVA

max turning diameter

ø32mm (1-1/4in)

How much does the Star SR-32J / SR-32JN cost?

Estimated price range

Est.$250,000 - $420,000

Our best estimate for a swiss-type lathe in this class — not a quote from Star Micronics. Configuration moves it a long way.

Overview

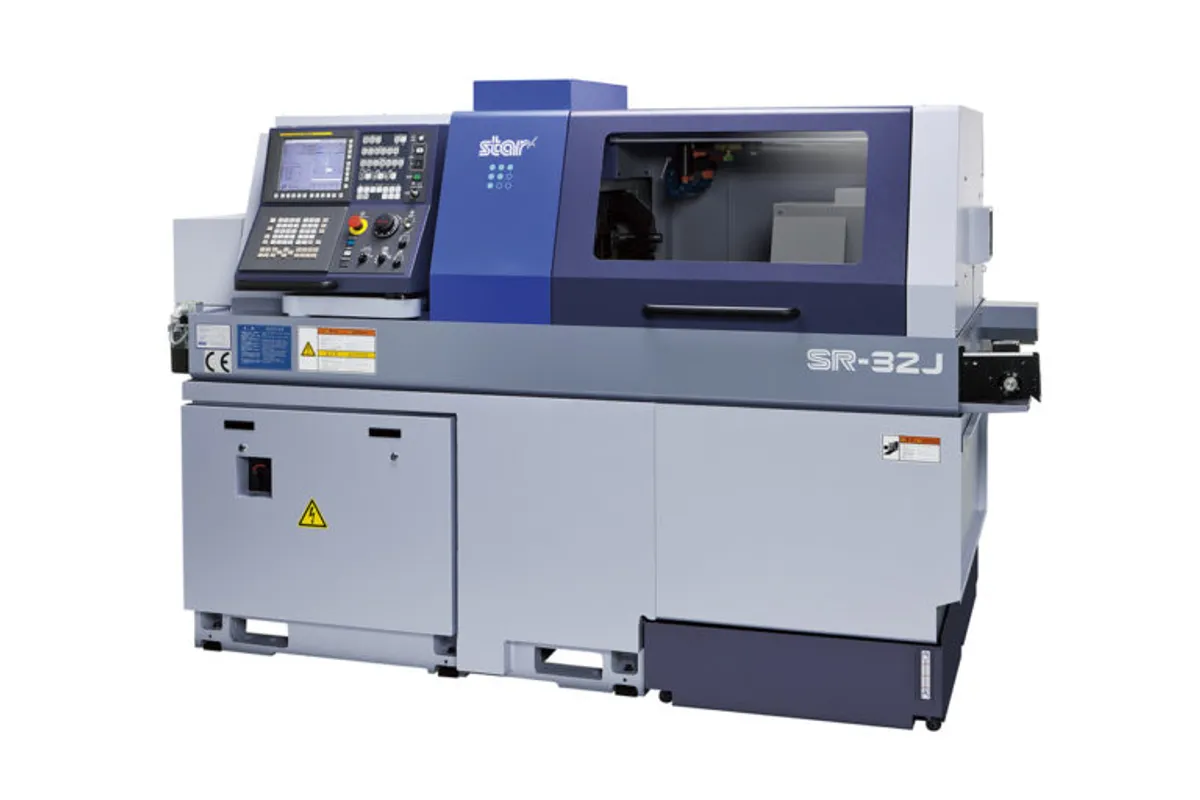

The Star SR-32J and SR-32JN are two versions of one 32 mm (1.26 in) Swiss-type lathe, separated by a single row of the table: the SR-32J works through a guide bushing and the SR-32JN is the non-guide bushing version. Both are listed with up to 10 axes, including Y1, Y2, C1 and C2, a Fanuc 32i-B control and a 12 kVA supply requirement.

Choosing between them is a question of part length. A guide bushing supports the bar right at the tool, which keeps long, slender parts straight under cutting load. Without one the bar is held by the collet alone. That arrangement is the better fit for short parts, leaves a shorter bar remnant and is more tolerant of stock that is not ground to size.

Two Y axes and two C axes in the list mean off-centre drilling and milling can be done on both the front and the back of the part. Star gives the size a second time as ø32mm (1-1/4in), for turning diameter and bar capacity alike. Spindle speed, power, stroke and weight are not in this table.

Full Specifications

Parameter	Value
Max Bar Capacity	32 mm (1.26 in)
Max Machining Diameter	32 mm (1.26 in)
Number of Axes	Up to 10 (including Y1, Y2, C1, C2)
Guide Bushing	SR-32J: Yes / SR-32JN: Non-guide bushing
Power Consumption	12 kVA
Max Turning Diameter	ø32mm (1-1/4in)
Bar Capacity	ø32mm (1-1/4in)
CNC Control	Fanuc 32i-B

Specifications sourced from starcnc.com — verified 2026-10-03

Strengths & Limitations

Strengths

Available with a guide bushing (SR-32J) or as a non-guide bushing machine (SR-32JN)
Up to 10 axes, including Y1, Y2, C1 and C2
32 mm (1.26 in) bar capacity and machining diameter
12 kVA supply requirement

Limitations

No spindle speed, spindle power, stroke or weight is listed, so cutting capacity has to be confirmed with Star
The SR-32JN has no guide bushing, which makes it the wrong pick for long, slender parts
The axis count is stated as up to 10, not a fixed 10, so it depends on the configuration ordered

Best For

SR-32J: long, slender parts from bar up to 32 mm (1.26 in) SR-32JN: short parts where a shorter bar remnant matters Parts with off-centre features on both ends, using Y1 and Y2 Sites that can provide a 12 kVA supply

Frequently Asked Questions

01 What is the difference between the SR-32J and the SR-32JN?

The guide bushing. The table lists the SR-32J with a guide bushing and the SR-32JN as non-guide bushing. Bar size, axis count, control and supply requirement are given once for both. Pick the SR-32J for long parts that need support at the cut and the SR-32JN for short parts.

02 What bar size do the SR-32J and SR-32JN take?

Maximum bar capacity and machining diameter are 32 mm (1.26 in), also stated as ø32mm (1-1/4in). This table shows no larger optional size, so confirm with Star if your stock runs above 32 mm.

03 How many axes are there, and which control is fitted?

Up to 10 axes, including Y1, Y2, C1 and C2, under a Fanuc 32i-B control. A Y axis and a C axis for each side allow milled and cross-drilled features off the centreline on both ends. The wording is "up to", so check the axis list of the machine quoted.
