Resato R-LCM 2040
This model was not found in Resato International's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Accuracy
Repeatability
cutting area
z axis travel
max traverse speed
drive type
How much does the Resato R-LCM 2040 cost?
Estimated price range
Our best estimate for a cnc waterjet cutting in this class — not a quote from Resato International. Configuration moves it a long way.
Overview
The Resato R-LCM 2040 is a CNC abrasive waterjet with a 2,000 x 4,000 mm (6.6 x 13.1 ft) cutting area, 250 mm (9.8 in) of Z travel and a maximum pressure of 60,000 PSI (4,137 bar). Its accuracy rows are the ones to notice: positioning at ±0.05 mm (±0.002 in) and repeatability at ±0.03 mm (±0.0012 in). The model is not in the maker's current lineup, so the listed figures need confirming on the machine.
Ball screw drives on linear guides are the mechanical basis for those accuracy figures. A ball screw is a choice for precision before speed, yet the listed maximum traverse is still 20,000 mm/min (787 ipm).
The pump is the Resato ACE dual-intensifier, and pump power spans 22 kW to 75 kW (30 to 100 HP). That is a wide range, and the pump on a specific machine sets its cutting rate. Two head options are listed, a standard abrasive head and the Resato 3D cutting head. No tilt range is stated for the 3D head, and a machine with only the standard head cuts vertical edges.
Abrasive is garnet, with 80 mesh as standard. The controller row names a CNC built on an outside control platform and lists two alternatives, so check which one a given machine carries before committing to post-processors and spares. Machine weight is approx. 7,000 kg (15,430 lbs).
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 2,000 x 4,000 mm (6.6 x 13.1 ft) |
| Z Axis Travel | 250 mm (9.8 in) |
| Positioning Accuracy | ±0.05 mm (±0.002 in) |
| Repeatability | ±0.03 mm (±0.0012 in) |
| Max Traverse Speed | 20,000 mm/min (787 ipm) |
| Drive Type | Linear guides, ball screw drives |
| Pump Type | Resato ACE dual-intensifier |
| Max Pressure | 60,000 PSI (4,137 bar) |
| Pump Power | 22 kW to 75 kW (30 to 100 HP) |
| Cutting Head Options | Standard abrasive / Resato 3D cutting head |
| Controller | Beckhoff or Siemens-based CNC |
| Abrasive | Garnet (80 mesh standard) |
| Machine Weight | Approx. 7,000 kg (15,430 lbs) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Positioning accuracy of ±0.05 mm (±0.002 in) with repeatability of ±0.03 mm (±0.0012 in)
- Ball screw drives on linear guides with traverse up to 20,000 mm/min (787 ipm)
- Resato ACE dual-intensifier pump at up to 60,000 PSI (4,137 bar)
- Resato 3D cutting head listed as an alternative to the standard abrasive head
- 250 mm (9.8 in) of Z travel over a 2,000 x 4,000 mm (6.6 x 13.1 ft) cutting area
Limitations
- Pump power ranges between 22 kW and 75 kW (30 to 100 HP), so cutting rate depends heavily on the pump fitted
- The 3D cutting head is one of two listed head options, not a given, and no tilt range is stated
- Two different CNC platforms are listed for the controller, so programming and spares differ between machines
- No cutting speed or maximum material thickness is listed
Best For
Frequently Asked Questions
01
Positioning accuracy is listed at ±0.05 mm (±0.002 in) and repeatability at ±0.03 mm (±0.0012 in). The axes use linear guides and ball screw drives. On a machine that has seen years of abrasive work, ask for a recent accuracy check, because worn screws and guides will not hold those values.
02
The pump type is listed as the Resato ACE dual-intensifier, with a maximum pressure of 60,000 PSI (4,137 bar). Pump power is given as 22 kW to 75 kW (30 to 100 HP), so identify the size installed: it determines water flow and therefore how fast the machine cuts.
03
Only if it has the Resato 3D cutting head, which the table lists as an option beside the standard abrasive head. No tilt angle is given for the 3D head, so confirm both that it is fitted and what range it covers. Z travel is 250 mm (9.8 in).
04
Machine weight is listed as approx. 7,000 kg (15,430 lbs) and the cutting area as 2,000 x 4,000 mm (6.6 x 13.1 ft). Overall footprint, electrical supply and water requirements are not in the table. The pump, anywhere between 22 kW and 75 kW (30 to 100 HP), is the main driver of the electrical load.
Videos

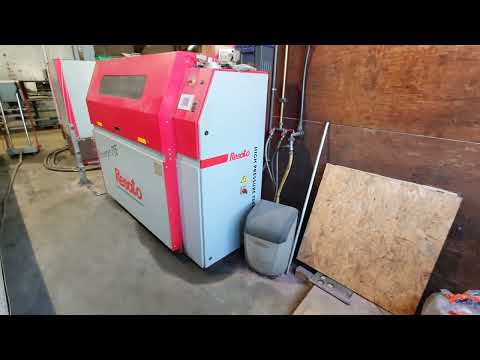

Troostwijk Auctions
