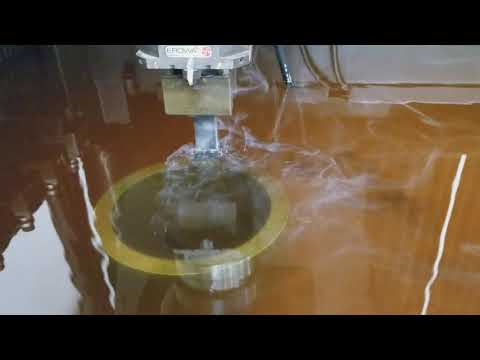

Sodick AG55L Sinker EDM

The Sodick AG55L is a mid-range sinker EDM machine built around Sodick's proprietary linear motor drive system, which eliminates ballscrew mechanics entirely in favor of direct-drive axes. This architecture removes backlash, reduces friction-related positioning error, and allows the AG55L to achieve sub-micron positioning repeatability that ballscrew machines cannot match without ballnut preload compensation. For precision mold and die work where electrode positioning accuracy directly determines cavity dimensional accuracy, the linear motor advantage is tangible and measurable.

Sodick's LN2 intelligent generator powers the AG55L's spark erosion process, using digital pulse control to manage discharge energy with nanosecond-level precision. The LN2 generator's adaptive control monitors gap conditions continuously and suppresses arcing before it can damage the workpiece or electrode surface. This results in significantly reduced re-cast layer thickness compared to conventional transistor generators — an important factor in mold tool life and in medical or aerospace applications where surface integrity is specified.

The AG55L's work envelope accommodates workpieces up to 700 kg and provides 550 x 350 x 350 mm of X/Y/Z travel. The machine's linear motor Z-axis delivers ultra-fast electrode retraction during orbit cycles, enabling aggressive flushing of eroded material without the mechanical delay of servo-driven ballscrews. Combined with Sodick's PIKA surface generator option, the AG55L can achieve Ra 0.05 µm mirror finishes directly from the EDM process.

The AG55L is well established in Japanese precision mold shops and is widely used internationally for connector molds, medical device tooling, and optical component cavities where tight tolerances and fine surface finishes are mandatory. Its combination of linear motor positioning, digital pulse generator, and PIKA surface capability positions it as a premium sinker EDM for shops that cannot afford dimensional or surface quality variation.
