Rollomatic GrindSmart 830XW
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Rapid Traverse
Spindle Power
How much does the Rollomatic GrindSmart 830XW cost?
Estimated price range
Our best estimate for a cnc grinding machine in this class — not a quote from Rollomatic. Configuration moves it a long way.
Overview

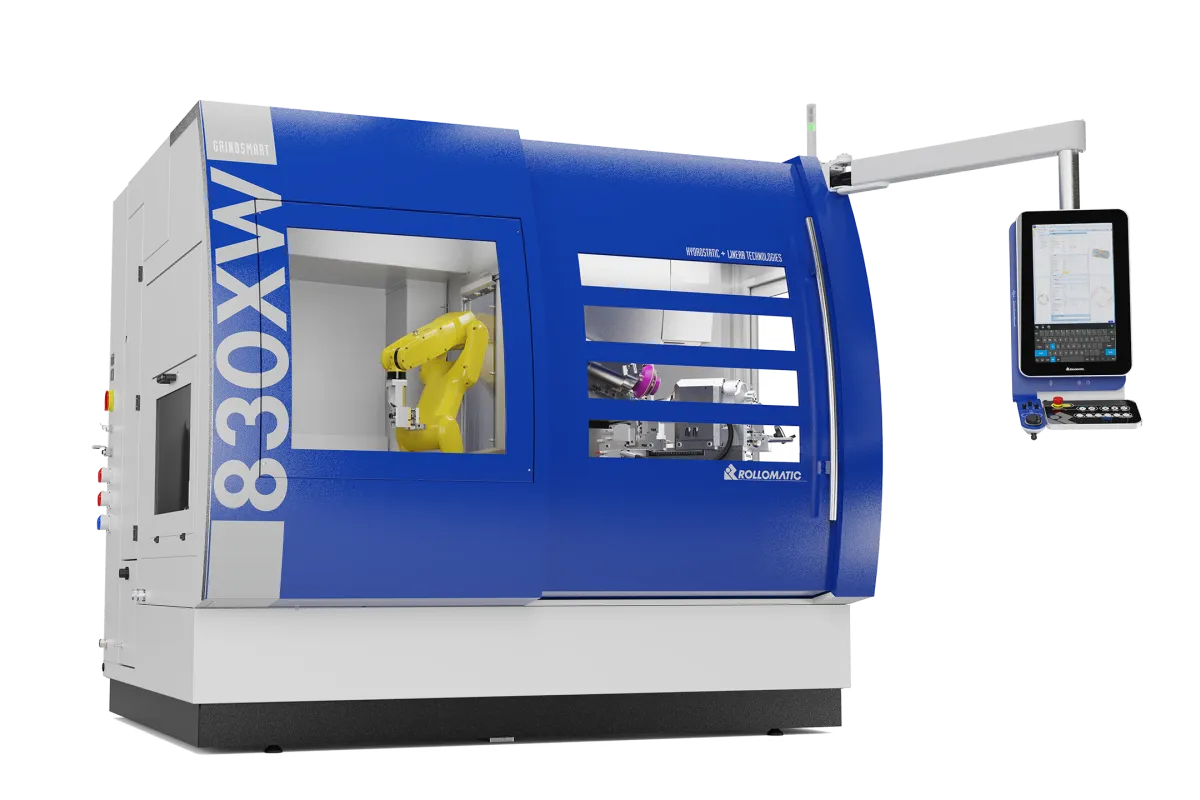

The Rollomatic GrindSmart 830XW is a CNC tool grinder for tools from Ø 1.0 to 32.0 mm (0.04 to 1.25 in), built on 320 mm (12.6 in) of X, 200 mm (7.87 in) of Y and 400 mm (15.7 in) of Z travel. Rollomatic pairs those linear axes with three direct-drive rotary axes, an 11 kW (15 HP) direct-drive grinding spindle and a wheel pack capacity of 15.
The A and B axes each swing from -30° to 210°, a 240° stroke, at up to 10800°/min, and the C axis rotates the tool at up to 1000 rpm. Position feedback is absolute throughout: linear scales resolving 0.00001 mm on X, Y and Z, and optical encoders resolving 0.00001° on the rotary axes. Absolute feedback means the axes know where they are at power-up, with no reference run. Linear rapid traverse is 12 m/min (473 in/min).
The grinding spindle is rated 11 kW (15 HP) with a 14 kW (19 HP) peak and runs from 500 to 8000 rpm. Wheels up to Ø 175 mm (7 in) mount on an HSK50E attachment, 4 to a pack, and the machine stores 15 packs. That is a large wheel library for one grinder. A family of tools needing different flute, gash and relief wheels can stay set up, without an operator swapping packs between batches.
Automation is on the same scale. The robot handles up to 4500 tools in 10 cassettes, with an overall tool length of up to 450 mm (18 in). That is longer than the 400 mm of Z travel, so ask Rollomatic how much of a long tool can be ground in one clamping. Clamping is pneumatic, through Schaublin and Nann adapters.
The machine weighs 6200 kg and has a listed footprint of 2200 x 2500 x 2200 mm (86.6 x 98.4 x 86.6 in). It needs a 3 x 400 V / 45 A supply, and total power is a maximum of 27 kW.
Full Specifications
| Parameter | Value |
|---|---|
| Grinding Range | Ø 1.0 – 32.0 mm (.04" – 1.25") |
| CNC Control | FANUC 30iMB |
| X-Axis Travel | 320 mm (12.6") |
| Y-Axis Travel | 200 mm (7.87") |
| Z-Axis Travel | 400 mm (15.7") |
| Rapid Traverse Rate | 12 m/min. (473"/min.) |
| Linear Axis Encoder | Absolute linear scale |
| Linear Axis Resolution | 0.00001 mm (.0000004") |
| A Axis Stroke | -30° to 210° (240°), direct drive |
| A Axis Fast Rotation | 10800°/min. |
| B Axis Stroke | -30° to 210° (240°), direct drive |
| B Axis Fast Rotation | 10800°/min. |
| C Axis Stroke | Tool rotation, direct drive |
| C Axis Fast Rotation | 1000 r.p.m. |
| Rotary Axis Encoder | Absolute optical encoder |
| Rotary Axis Resolution | 0.00001° |
| Spindle Motor Power | 11 kW (15 HP), direct drive |
| Spindle Peak Power | 14 kW (19 HP) |
| Max Spindle Speed | 500 – 8000 r.p.m. |
| Grinding Wheel Diameter | Ø Max. 175 mm (7") |
| Wheel Pack Capacity | 15 |
| Number of Wheels per Pack | 4 |
| Wheel Attachment | HSK50E |
| Clamping System | Adapters Schaublin and Nann |
| Clamping Type | Pneumatic |
| Robot Number of Tools | Up to 4500 (10 cassettes) |
| Robot Max Overall Length | 450 mm (18") |
| Floor Space Required | 2200 x 2500 x 2200 mm (86.6" x 98.4" x 86.6") |
| Machine Weight | 6200 kg |
| Total Power | Maximum 27 kW |
| Power Supply | 3 x 400V/45A |
Specifications sourced from rollomatic.ch — verified 2026-10-03
Strengths & Limitations
Strengths
- Grinding range of Ø 1.0 to 32.0 mm (0.04 to 1.25 in) on one machine
- Wheel pack capacity of 15 with 4 wheels per pack, on an HSK50E wheel attachment
- Robot capacity of up to 4500 tools in 10 cassettes, with overall tool length up to 450 mm (18 in)
- Direct-drive A, B and C axes; A and B each cover a 240° stroke at 10800°/min
- Absolute linear scales with 0.00001 mm resolution and absolute optical rotary encoders at 0.00001°
- 11 kW (15 HP) direct-drive spindle with a 14 kW (19 HP) peak
Limitations
- Spindle speed tops out at 8000 rpm, which sets the ceiling on wheel peripheral speed with wheels of Ø 175 mm (7 in) or less
- The grinding range starts at Ø 1.0 mm, so micro tools below that diameter are outside the table
- Rollomatic's table gives encoder resolution but no positioning accuracy or repeatability figure
- At 6200 kg, with a 3 x 400 V / 45 A supply and up to 27 kW of total power, it needs a properly rated floor and feed
Best For
Frequently Asked Questions
01
Rollomatic lists a grinding range of Ø 1.0 to 32.0 mm (0.04 to 1.25 in). Linear travels are 320 mm (12.6 in) in X, 200 mm (7.87 in) in Y and 400 mm (15.7 in) in Z.
02
The wheel pack capacity is 15 and each pack carries 4 wheels. Wheels are up to Ø 175 mm (7 in) in diameter and mount on an HSK50E attachment. The spindle that drives them is 11 kW (15 HP), 14 kW (19 HP) peak, at 500 to 8000 rpm.
03
The table lists a robot with a capacity of up to 4500 tools in 10 cassettes and a maximum overall tool length of 450 mm (18 in). Tool clamping is pneumatic, with Schaublin and Nann adapters.
04
The supply is 3 x 400 V / 45 A and total power is a maximum of 27 kW. The listed footprint is 2200 x 2500 x 2200 mm (86.6 x 98.4 x 86.6 in) and the machine weighs 6200 kg, so check floor loading as well as access.
05
Mostly in size. The GrindSmart 830XW has 320 mm (12.6 in) of X, 200 mm (7.87 in) of Y and 400 mm (15.7 in) of Z travel, an 11 kW (15 HP) spindle running 500 to 8000 rpm and a weight of 6200 kg. The NaNO6 has 146 mm (5.8 in) of X and Z travel, 99 mm (3.9 in) of Y, a 1.5 kW spindle running 2000 to 12000 rpm and weighs 2900 kg (6400 lbs).
