DMG Mori NVD 4000 DCG

Q: How much does the DMG Mori NVD 4000 DCG cost?

Our best estimate for the DMG Mori NVD 4000 DCG is $130,000 - $185,000. This is an estimate for a vertical machining centers (vmc) in this class, not a quote from DMG Mori; configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/dmg-mori-nvd-4000-dcg#price; the request is passed to DMG Mori or an authorised dealer.

Est. $130,000 - $185,000 Specs verified 2026-10-02 · dmgmori.com Updated 2026-10-02

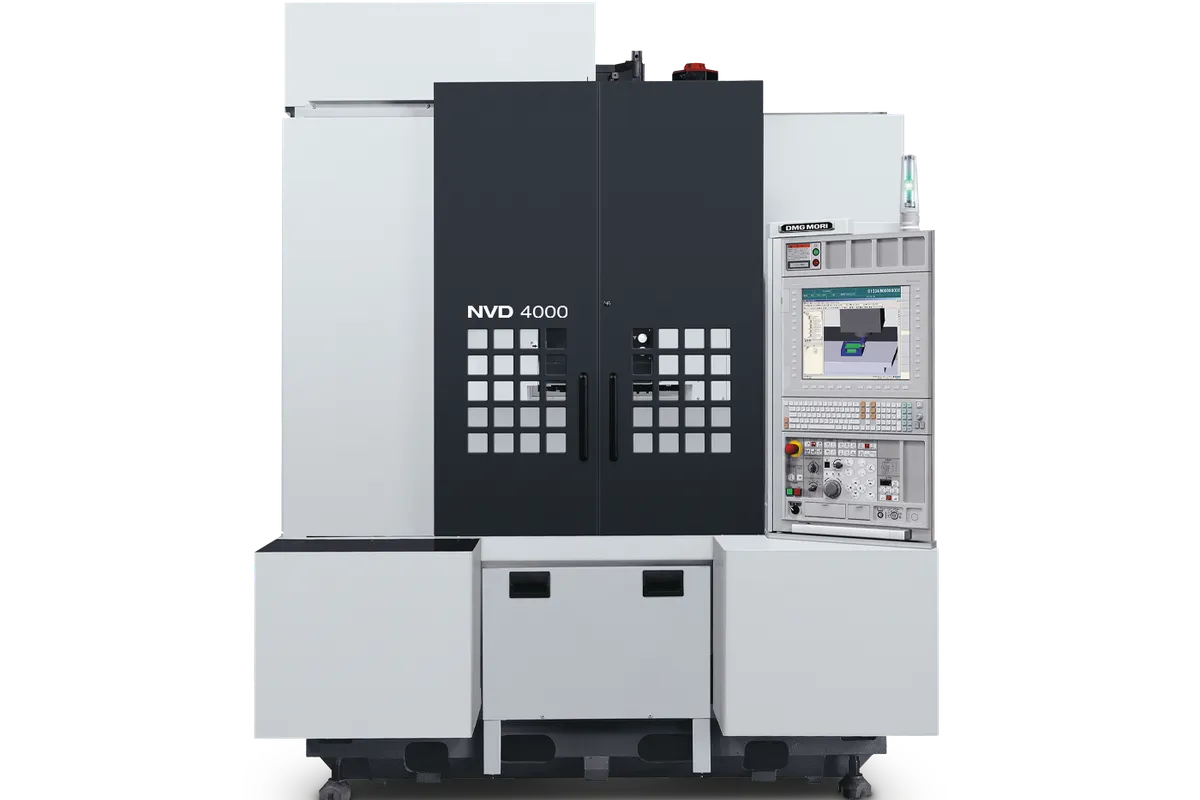

Image: dmgmori.com, DMG Mori

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

400 mm (15.7 in)

Z Travel

400 mm (15.7 in)

Max Spindle

12,000 rpm; 20,000 rpm (optional); 30,000 rpm (optional)

max workpiece length

700 mm (27.6 in)

max workpiece width

450 mm (17.7 in)

How much does the DMG Mori NVD 4000 DCG cost?

Estimated price range

Est.$130,000 - $185,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DMG Mori. Configuration moves it a long way.

Overview

The DMG MORI NVD 4000 DCG is a vertical machining center specified for die and mold work, with 600 × 400 × 400 mm (23.6 × 15.7 × 15.7 in) of travel, a 12,000 rpm spindle and 20,000 rpm or 30,000 rpm spindles as options. The largest workpiece is 700 mm (27.6 in) long, 450 mm (17.7 in) wide and 400 mm (15.7 in) high, up to 350 kg (771.6 lb).

Spindle speed is the main choice to make. 12,000 rpm covers general milling of mold bases and inserts. The 20,000 rpm and 30,000 rpm spindles are options, and they are what small ball-nose cutters need to reach a workable surface speed in hardened steel. DMG MORI's Highlights give no power, torque or taper for any of the three, so compare the spindle curves before settling on one, since a faster spindle usually has less torque at the low end.

Finishing programs for molds run for hours, and the machine is equipped for that. DMG MORI lists direct scale feedback on the X-, Y- and Z-axis, a separate-type coolant chiller and a separate-type oil cooler, and says the design concentrates on CNC control, positioning and measures against heat displacement. Scales measure the slide position itself, so ball screw growth during a long cycle does not end up on the part. AI-nano-high-precision contour control is a standard feature of the die and mold specification.

All of this sits on DCG drives, with which DMG MORI associates longer tool life, improved surface quality and roundness, and acceleration. The NV 4000 DCG shares the 600 × 400 × 400 mm travels and the 350 kg (771.6 lb) limit and accepts a 750 mm (29.5 in) long workpiece. The NVD 6000 DCG is the step up in size, with 900 × 600 × 450 mm (35.4 × 23.6 × 17.7 in) of travel.

Full Specifications

Parameter	Value
Max Workpiece Length	700 mm (27.6 in)
Max Workpiece Width	450 mm (17.7 in)
Max Workpiece Height	400 mm (15.7 in)
Max Workpiece Weight	350 kg (771.6 lb)
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	400 mm (15.7 in)
Max Spindle Speed	12,000 rpm; 20,000 rpm (optional); 30,000 rpm (optional)
Scale Feedback	Direct scale feedback for X-, Y-, Z-axis
Cooling Equipment	Coolant chiller (separate type) and oil cooler (separate type)
Contour Control	AI-nano-high-precision contour control

Specifications sourced from dmgmori.com — verified 2026-10-02

Strengths & Limitations

Strengths

Spindle speed of 12,000 rpm, with 20,000 rpm and 30,000 rpm spindles available as options
Direct scale feedback for the X-, Y- and Z-axis
Separate-type coolant chiller and separate-type oil cooler
AI-nano-high-precision contour control is a standard feature of the die and mold specification
DCG drives, which DMG MORI associates with longer tool life and improved surface quality and roundness

Limitations

The 20,000 rpm and 30,000 rpm spindles are options
No spindle power, torque or taper is stated for any of the three speeds
Workpieces are limited to 350 kg (771.6 lb), which restricts the size of mold base that can be loaded
Z travel of 400 mm (15.7 in) has to cover tool length as well as cavity depth

Best For

Finishing small mold inserts and cavities within 600 × 400 × 400 mm (23.6 × 15.7 × 15.7 in) Small-diameter ball-nose work with the optional 20,000 rpm or 30,000 rpm spindle Long finishing programs where direct scale feedback and chilled coolant hold size Die and mold components up to 350 kg (771.6 lb)

Frequently Asked Questions

01 What spindle speeds are available on the NVD 4000 DCG?

DMG MORI lists a maximum spindle speed of 12,000 rpm, with 20,000 rpm and 30,000 rpm as options. No power, torque or taper is given for any of them in the Highlights. Choose by the smallest cutter you run regularly: the smaller the tool, the more speed it needs to cut properly.

02 What makes the NVD 4000 DCG a die and mold machine?

Its standard die and mold specification includes AI-nano-high-precision contour control. Around that, DMG MORI lists direct scale feedback for the X-, Y- and Z-axis, a separate-type coolant chiller and a separate-type oil cooler, all aimed at heat displacement during long programs, plus the optional 20,000 rpm and 30,000 rpm spindles for small finishing tools.

03 How large a workpiece fits on the NVD 4000 DCG?

Up to 700 mm (27.6 in) long, 450 mm (17.7 in) wide and 400 mm (15.7 in) high, with a maximum weight of 350 kg (771.6 lb). Travels are 600 mm (23.6 in) in X and 400 mm (15.7 in) in Y and Z. Cavity depth and tool length together have to fit inside the Z travel.

04 How does the NVD 4000 DCG differ from the NV 4000 DCG in size?

Hardly at all. The NV 4000 DCG has the same 600 × 400 × 400 mm (23.6 × 15.7 × 15.7 in) of travel and the same 350 kg (771.6 lb) workpiece limit, and accepts a workpiece 750 mm (29.5 in) long. The NVD 4000 DCG takes 700 mm (27.6 in). The choice between them rests on equipment, not envelope.

05 What is the next size up from the NVD 4000 DCG?

The NVD 6000 DCG, with 900 mm (35.4 in) of X, 600 mm (23.6 in) of Y and 450 mm (17.7 in) of Z travel. Against the 600 × 400 × 400 mm of the NVD 4000 DCG, that is a much larger table area and a small gain in Z.
