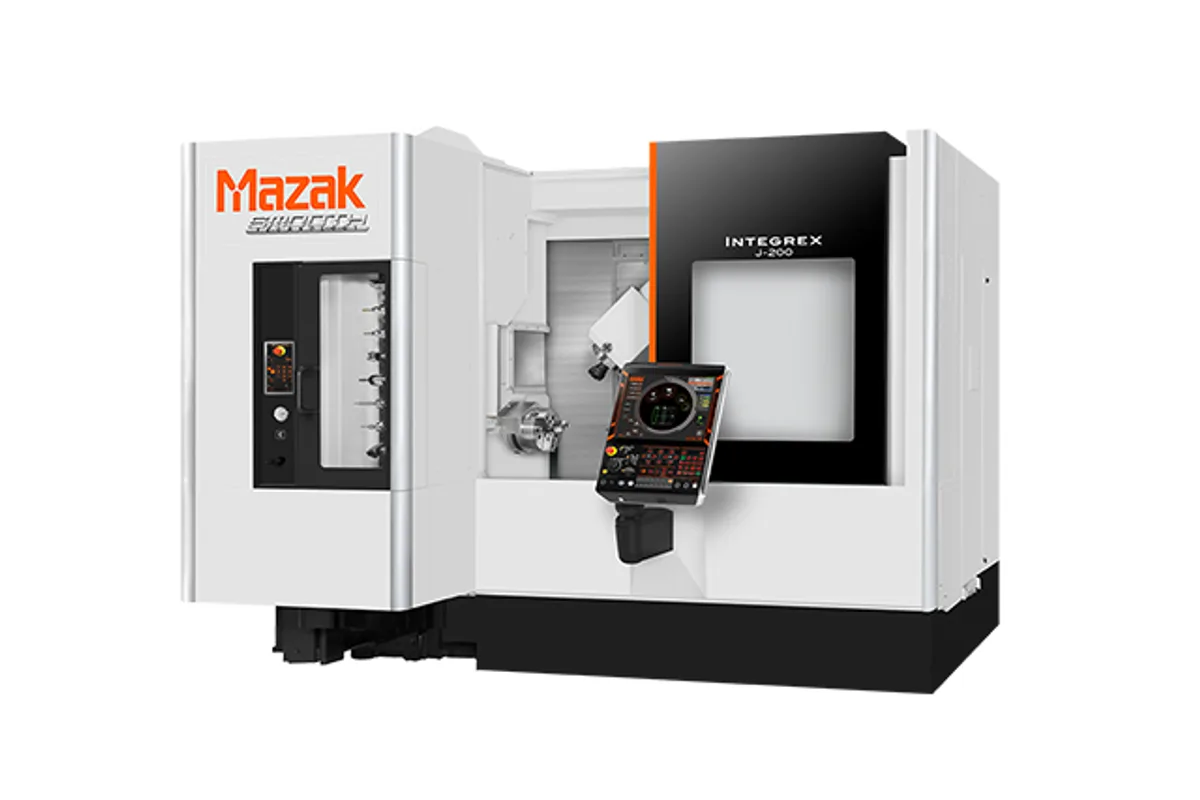

Mazak INTEGREX j-200
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Mazak INTEGREX j-200 cost?
Estimated price range
Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak INTEGREX j-200 is the tailstock model in the 8-inch chuck group of the INTEGREX j series: a 500U bed with 20 in (508 mm) of turning length, a 5,000 rpm main spindle and a 12,000 rpm HSK-A63 milling spindle on an indexing B-axis. Travels are 18 in (457 mm) in X, 8 in (203 mm) in Y and 22 in (559 mm) in Z, each with 1,575 ipm (40 m/min) rapids.
The main spindle is rated 7.5 kW (10 HP) continuous and 11 kW (15 HP) (40% ED). On the milling side the motor gives 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) (40% ED), with torque of 16 Nm (12 ft-lb) continuous and 20.3 Nm (15 ft-lb) (40% ED). With torque at that level the head is better matched to drills, taps and end mills run at speed than to large cutters turning slowly.
B-axis range is -30° to +190°. Mazak describes the series' milling spindle unit as indexing in 5-degree increments and clamping on an index coupling, so angled faces are machined at fixed positions with the head locked. The same tool can then cover an outer diameter, an end face and a diagonal feature, which stretches a 20-tool magazine further than the count suggests. Mazak offers 36 or 72 tool magazines in the series as options.

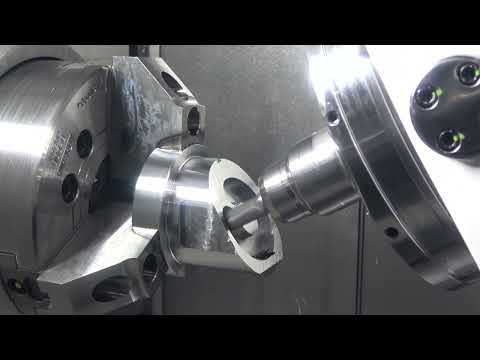

Long parts are supported by an MT No.5 tailstock with 1,574 lb (714 kg) of thrust. The machine occupies 118 in (2,997 mm) × 95 in (2,413 mm), stands 94 in (2,388 mm) high and weighs 16,314 lb (7,400 kg). For both-ends work in one cycle, the INTEGREX j-200S brings a second spindle and extends Z to 38 in (965 mm) and turning length to 36 in (914 mm).
Full Specifications
| Parameter | Value |
|---|---|
| Bed Length Type | 500U |
| Max Turning Length | 20 in (508 mm) |
| Max Spindle Speed | 5,000 rpm |
| Spindle Power Intermittent | 11 kW (15 HP) (40% ED) |
| Spindle Motor Power | 7.5 kW (10 HP) continuous |
| Milling Spindle Speed | 12,000 rpm |
| Milling Spindle Torque Intermittent | 20.3 Nm (15 ft-lb) (40% ED) |
| Milling Spindle Torque | 16 Nm (12 ft-lb) continuous |
| Milling Spindle Power Intermittent | 7.5 kW (10 HP) (40% ED) |
| Milling Spindle Power | 5.5 kW (7 HP) continuous |
| Spindle Taper | HSK-A63 |
| Tool Capacity | 20 tools |
| Max Tool Diameter (full magazine) | Ø5 in (127 mm) |
| Max Tool Length | 8 in (203 mm) |
| Max Tool Weight | 11 lb (5 kg) |
| X-Axis Travel | 18 in (457 mm) |
| Y-Axis Travel | 8 in (203 mm) |
| Z-Axis Travel | 22 in (559 mm) |
| B Axis Range | -30° - +190° |
| Rapid Traverse X | 1,575 ipm (40 m/min) |
| Rapid Traverse Y | 1,575 ipm (40 m/min) |
| Rapid Traverse Z | 1,575 ipm (40 m/min) |
| Tailstock Taper | MT No.5 |
| Tailstock Thrust | 1,574 lb (714 kg) |
| Floor Space Required | 118 in (2,997 mm) × 95 in (2,413 mm) (W × L) |
| Machine Height | 94 in (2,388 mm) |
| Machine Weight | 16,314 lb (7,400 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- B-axis milling spindle with a range of -30° to +190°, letting one tool work outer diameters, end faces and angled features
- 12,000 rpm HSK-A63 milling spindle rated 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) (40% ED)
- MT No.5 tailstock with 1,574 lb (714 kg) of thrust for shaft work up to 20 in (508 mm) long
- 1,575 ipm (40 m/min) rapids on X, Y and Z
- At 16,314 lb (7,400 kg) it is lighter than the INTEGREX j-200S at 20,282 lb (9,200 kg), with a shorter bed
Limitations
- Main spindle is 7.5 kW (10 HP) continuous; the INTEGREX j-200 NEO lists 11 kW (15 HP) continuous on the same travels
- Milling torque is 16 Nm (12 ft-lb) continuous and 20.3 Nm (15 ft-lb) (40% ED), which limits large-diameter cutters
- The listed magazine holds 20 tools; the 36 and 72 tool magazines are options in the series
- Mazak describes the series B-axis as indexed in 5-degree increments and clamped by a coupling; its description does not mention B-axis contouring
- The table gives no maximum turning diameter, so swing for a given part has to be confirmed with Mazak
Best For
Frequently Asked Questions
01
The second spindle and the bed length. The INTEGREX j-200S lists 38 in (965 mm) of Z travel and a 36 in (914 mm) turning length at 20,282 lb (9,200 kg), against 22 in (559 mm), 20 in (508 mm) and 16,314 lb (7,400 kg) on the j-200. X and Y travels, the 5,000 rpm main spindle and the 20-tool magazine are the same on both.
02
The main spindle runs to 5,000 rpm and is rated 7.5 kW (10 HP) continuous and 11 kW (15 HP) (40% ED). The milling spindle runs to 12,000 rpm with 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) (40% ED). Milling torque is 16 Nm (12 ft-lb) continuous and 20.3 Nm (15 ft-lb) (40% ED).
03
The table lists 20 tools on an HSK-A63 taper, each up to Ø5 in (127 mm) in diameter, 8 in (203 mm) long and 11 lb (5 kg). Mazak's series description gives 20 tools as the standard magazine and 36 or 72 tools as options.
04
An MT No.5 tailstock with 1,574 lb (714 kg) of thrust. Mazak says the tailstock in this series has enough stroke to stay clear of the milling spindle, so setups can be made without interference. Maximum turning length is 20 in (508 mm).
05
The footprint is 118 in (2,997 mm) × 95 in (2,413 mm) and the machine is 94 in (2,388 mm) high. Weight is 16,314 lb (7,400 kg). The table does not say whether those dimensions include the chip conveyor or service clearances, so work from the installation drawing when laying out the cell.
