Yamazaki Mazak CNC Lathes / Turning Centers

Mazak QTE-200MY

Est. $90,000 - $140,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

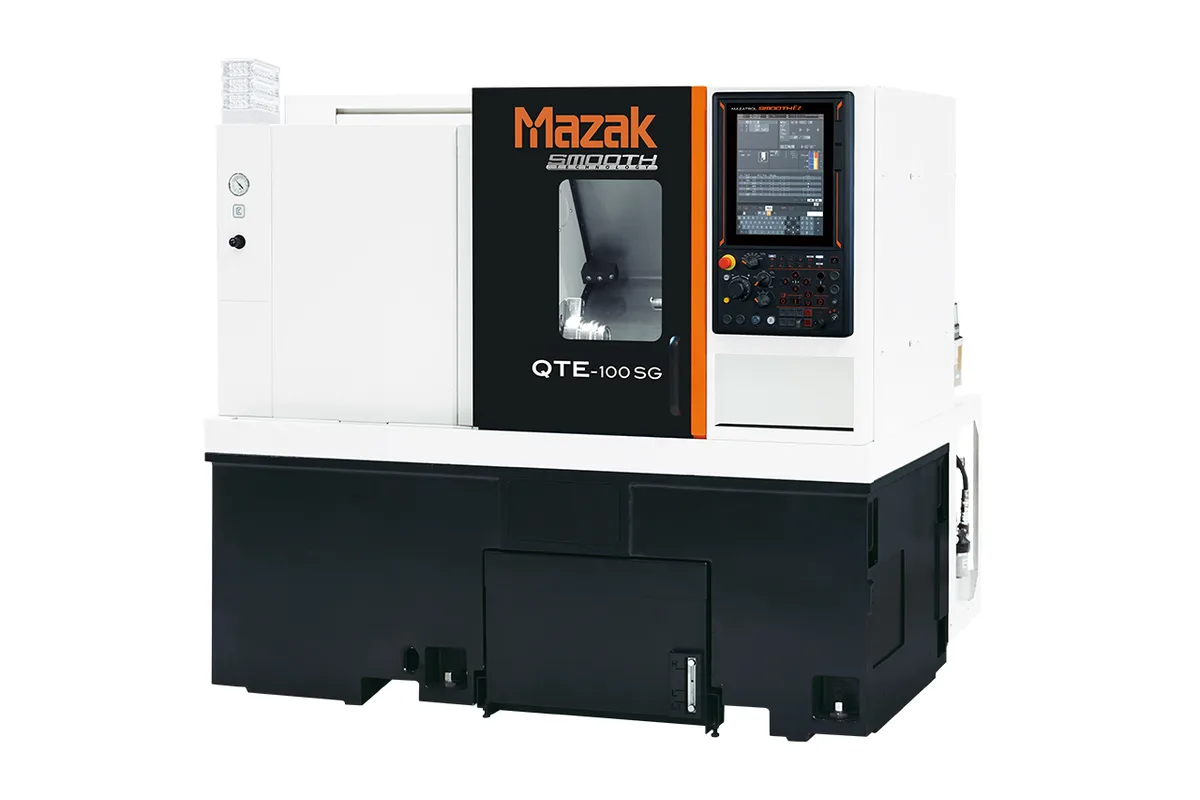

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

9 in (229 mm)

Z Travel

24 in (610 mm)

Max Spindle

5,000 rpm

Tool Capacity

12 tools

Spindle Power

11 kW (15 HP) continuous

bed length type

500U

How much does the Mazak QTE-200MY cost?

Estimated price range

Est.$90,000 - $140,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

A single-spindle lathe with a milling turret and a Y-axis: that is how Mazak's model list configures the QTE-200MY, and it is the reason to pick it over the plainer 8 in chuck machines of the QTE line. It turns up to Ø13 in (330 mm) under a Ø27 in (686 mm) swing, passes Ø3 in (76 mm) bar, and has 9 in (229 mm) of X and 24 in (610 mm) of Z travel on the 500U bed.

Power comes from a 5,000 rpm main spindle rated 11 kW (15 HP) continuous and 15 kW (40% ED), with 123 ft-lb (167 Nm) of maximum torque. The 40% ED figure is a short-duty rating. Plan long roughing passes around the continuous number.

The milling side is where this model earns its letters. Twelve tool positions feed rotary tools turning at up to 4,500 rpm, with 3.7 kW continuous, 5.5 kW (40% ED) and 35 ft-lb (47 Nm) of maximum torque. With Y-axis movement the turret can put a flat, a keyway or an off-centre hole pattern on a turned part without a trip to a mill. Mazak's table lists Y travel as 3.9 and prints no unit beside it, while the rest of the page is in inches. Y rapid traverse is 394 ipm (10 m/min), a third of the 1,181 ipm (30 m/min) on X and Z.

Mazak's configuration for this model names no second spindle, so the back of the part needs a second chucking. The QTE-200MSY is the same size of machine with one added. Mazak pairs the QTE series with the MAZATROL SmoothEz control and offers robot and gantry loading as optional equipment.

Full Specifications

Parameter	Value
Bed Length Type	500U
Max Swing	Ø27 in (686 mm)
Max Turning Diameter	Ø13 in (330 mm)
Max Bar Capacity	Ø3 in (76 mm)
Chuck Size	8 in
Max Spindle Speed	5,000 rpm
Spindle Max Torque	123 ft-lb (167 Nm)
Spindle Power Intermittent	15 kW (40% ED)
Spindle Motor Power	11 kW (15 HP) continuous
Tool Capacity	12 tools
Milling Spindle Speed	4,500 rpm
Rotary Tool Spindle Max Torque	35 ft-lb (47 Nm)
Rotary Tool Spindle Spindle Motor 40 Pct Ed	5.5 kW (40% ED)
Milling Spindle Power	3.7 kW continuous
X-Axis Travel	9 in (229 mm)
Z-Axis Travel	24 in (610 mm)
Rapid Traverse X	1,181 ipm (30 m/min)
Rapid Traverse Y	394 ipm (10 m/min)
Rapid Traverse Z	1,181 ipm (30 m/min)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Y-axis on a 12-tool milling turret, for flats, keyways and off-centre holes inside the turning setup
Ø3 in (76 mm) bar capacity behind an 8 in chuck
Main spindle rated 11 kW (15 HP) continuous and 15 kW (40% ED), with 123 ft-lb (167 Nm) of maximum torque
Rotary tools reach 4,500 rpm with 35 ft-lb (47 Nm) of maximum torque
24 in (610 mm) of Z travel and 12 tools, against 13 in (330 mm) and 8 tools on the QTE-200 SG

Limitations

No second spindle in Mazak's configuration for this model; back-face work means a second setup or the QTE-200MSY
The rotary-tool motor is 3.7 kW continuous, which keeps milling to small cutters and drills
Y-axis rapid traverse is 394 ipm (10 m/min) against 1,181 ipm (30 m/min) on the other two axes
Top speed is 5,000 rpm; the 6 in chuck QTE-100M reaches 6,000 rpm for small-diameter work

Best For

Bar-fed parts up to Ø3 in (76 mm) with milled and cross-drilled features Shafts within 24 in (610 mm) of Z travel that need keyways or flats Chucked parts up to Ø13 in (330 mm) completed from one side Turn-mill work where one end of the part holds all the features

Frequently Asked Questions

01 What is the difference between the QTE-200MY and the QTE-200MSY?

Both are 8 in chuck machines with a Ø27 in (686 mm) swing, Ø13 in (330 mm) maximum turning diameter, a 5,000 rpm spindle rated 11 kW (15 HP) continuous, 12 tools and a Y-axis. Mazak's configuration for the QTE-200MY is Milling, Y-axis. The QTE-200MSY adds a second spindle for machining the back of the part in the same cycle.

02 Does the QTE-200MY have live tooling?

Yes. Mazak's model list shows Milling in its configuration, and the table gives a rotary tool spindle speed of 4,500 rpm with 3.7 kW continuous, 5.5 kW (40% ED) and 35 ft-lb (47 Nm) of maximum torque. The turret holds 12 tools.

03 How far does the Y-axis travel?

Mazak's table lists Y travel as 3.9 and shows no unit for that row. The other travels on the page are given in inches: 9 in (229 mm) for X and 24 in (610 mm) for Z. Y-axis rapid traverse is 394 ipm (10 m/min). Ask for the Y stroke in writing if a feature on your part sits close to that limit.

04 What bar size can the QTE-200MY take?

Maximum bar capacity is Ø3 in (76 mm) with the 8 in chuck. Larger blanks are chucked, up to the maximum turning diameter of Ø13 in (330 mm). Mazak offers a gantry loader and the Ez LOADER collaborative-robot system as optional automation for the QTE series.

05 How does the QTE-200MY compare with the QTE-200M?

The QTE-200M table shows the same 8 in chuck, Ø27 in (686 mm) swing, 5,000 rpm spindle, 12 tools, 9 in (229 mm) of X and 24 in (610 mm) of Z travel, and no Y travel row. Y-axis movement, with its 394 ipm (10 m/min) rapid, is what the MY brings.
