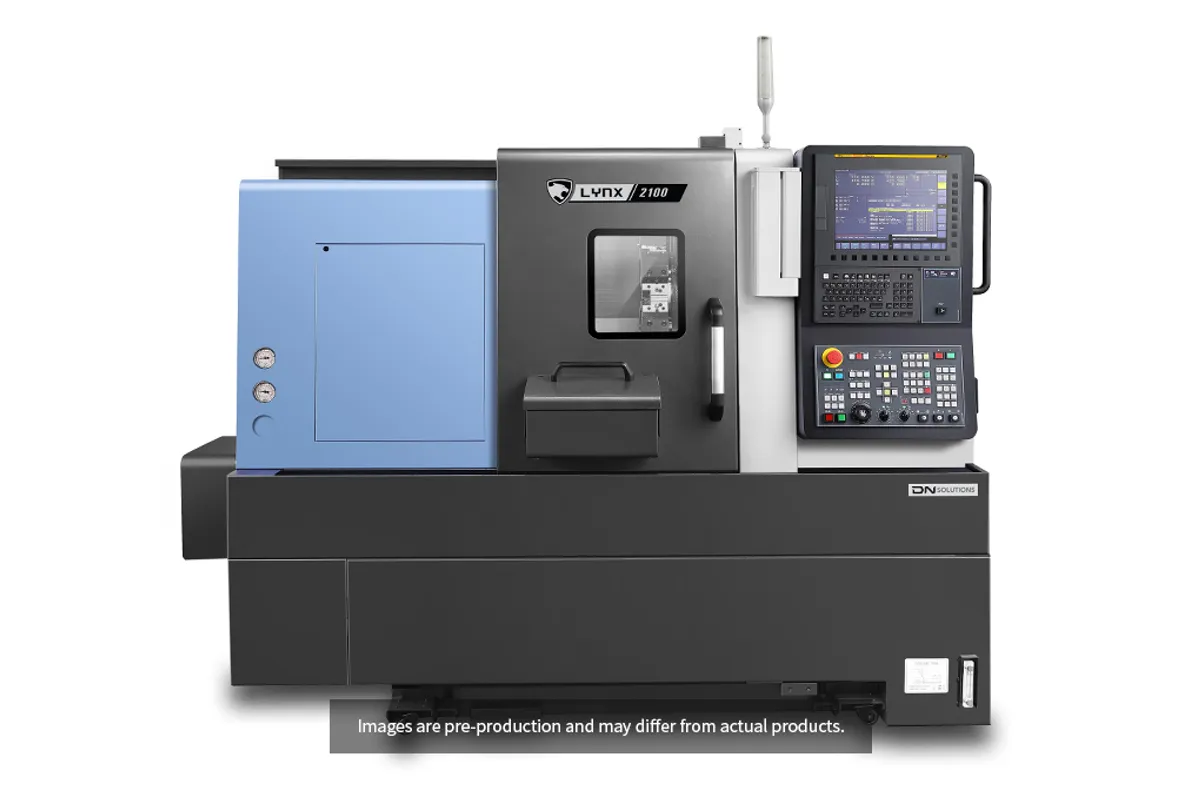

DN Solutions LYNX 2100 LMA

$75,000 - $110,000 Updated 2026-03-19

Key Specifications

Max Spindle

6,000 RPM

Spindle Power

15 kW (20 hp)

Max Turn Length

510 mm

chuck size

6 inch

max turning diameter

300 mm

x axis travel

205 mm (8 in)

Overview

The DN Solutions LYNX 2100 LMA is a compact 6-inch chuck turning center with live milling capability that's built for high-mix shops running smaller diameter parts. It's the smallest chuck variant in the LYNX 2100 LM lineup, and that 6-inch chuck with 6,000 RPM spindle speed makes it a natural fit for running precision parts in aluminum, brass, and mild steel where surface finish and cycle time both matter.

Under the hood you've got a 15 kW (20 hp) spindle motor pushing 127 N-m (94 ft-lb) of torque. That's not going to win any heavy-roughing contests, but it's more than enough for the part envelope this machine targets. The 300 mm (12 in) max turning diameter and 510 mm (20 in) max turning length cover a wide range of small-to-medium parts. Axis travels run 205 mm (8 in) on X and 560 mm (22 in) on Z, with rapids at 30 m/min and 36 m/min respectively — quick enough to keep cycle times competitive.

What sets the LMA apart from a straight turning machine is the 12-station turret with live tooling running at 6,000 RPM. You can drill cross-holes, mill flats, and cut keyways without a second setup. For shops that don't need the full capability of a Y-axis mill-turn but want to reduce part handling, this hits the sweet spot.

The FANUC 0i-TF Plus control is the standard fare here — reliable, well-supported, and familiar to anyone who's run a Fanuc-equipped machine. The compact footprint at 2,540 mm (100 in) long makes it an easy fit in tight shop layouts. At 3,480 kg (7,672 lb), floor prep isn't a major concern either.

If you're looking for a reliable small-parts lathe with milling capability that won't break the bank, the LYNX 2100 LMA deserves a spot on your shortlist. It's proven technology from a manufacturer with strong dealer support across North America.

Full Specifications

Parameter	Value
Chuck Size	6 inch
Max Turning Diameter	300 mm
Max Turning Length	510 mm
X Axis Travel	205 mm (8 in)
Z Axis Travel	560 mm (22 in)
Rapid Traverse X	30 m/min (1,181 ipm)
Rapid Traverse Z	36 m/min (1,417 ipm)
Max Spindle Speed	6,000 RPM
Spindle Motor Power	15 kW (20 hp)
Spindle Torque	127 N-m (94 ft-lb)
Turret Stations	12-station with live tooling
Rotary Tool Speed	6,000 RPM
Machine Length	2,540 mm (100 in)
Machine Height	1,693 mm (67 in)
Machine Width	1,595 mm (63 in)
Machine Weight	3,480 kg (7,672 lb)
CNC Control	FANUC 0i-TF Plus
Metric	IMPERIAL
Capacity	Chuck sizeMax. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Turret	No. of tool stationRotary Tool r/min
No Of Tool Station	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	Lynx 2600M
12 Ea	6000 RPM

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

6,000 RPM spindle speed is ideal for small-diameter aluminum and brass parts where high surface speeds matter
Live tooling at 6,000 RPM eliminates second-op setups for cross-drilling, milling flats, and keyway cutting
Compact 2,540 mm (100 in) footprint fits easily into tight shop layouts
FANUC 0i-TF Plus control is industry standard with strong operator familiarity and service support
Light 3,480 kg (7,672 lb) weight means minimal floor prep compared to larger turning centers
12-station turret gives plenty of tool capacity for complex parts without tool changes mid-program

Limitations

15 kW (20 hp) spindle limits heavy roughing in harder steels and stainless — not a heavy-metal machine
6-inch chuck restricts part diameter for shops that occasionally need to swing bigger work
No sub-spindle on this variant — you'll need the LMSA model for done-in-one parts
No Y-axis limits the complexity of milling operations compared to full mill-turn machines

Best For

Job shops running high-mix small-diameter parts in aluminum, brass, and mild steel Medical and electronics manufacturers needing precision small parts with secondary milling features Shops looking to consolidate turning and simple milling into a single setup Production environments running bar stock up to 6-inch chuck capacity Facilities with limited floor space that need mill-turn capability in a compact package

Frequently Asked Questions

01 What's the difference between the LYNX 2100 LMA, LMB, and LMC?

The letter suffix indicates chuck size: LMA is 6-inch (152 mm), LMB is 8-inch (203 mm), and LMC is 10-inch (254 mm). Spindle speed drops as chuck size increases — 6,000 RPM on the LMA, 4,500 on the LMB, and 3,500 on the LMC. Torque increases accordingly. All three share the same base platform and live tooling capability.

02 Can the LYNX 2100 LMA do milling operations?

Yes. The 12-station turret accepts live tooling spinning at 6,000 RPM. You can drill cross-holes, mill flats, and cut hex features without removing the part. It won't replace a dedicated machining center for complex 3D milling, but it handles secondary operations well.

03 How does the LYNX 2100 LMA compare to the Haas ST-10Y?

Both target the small-parts turning market. The LYNX 2100 LMA has a 6-inch chuck versus the Haas's 6.5-inch, similar spindle power, and comparable live tooling speed. The Haas adds Y-axis capability which the LMA lacks. The DN Solutions machine tends to be priced slightly higher but offers robust build quality and FANUC control standard.

04 What control does the LYNX 2100 LMA run?

It runs the FANUC 0i-TF Plus, which is the most common control in the turning center market. It supports G-code programming and is compatible with most CAM software. FANUC's service network makes getting support straightforward anywhere in North America.
