DN Solutions LYNX 2100 A
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
chuck size
max turning diameter
x axis travel
Overview

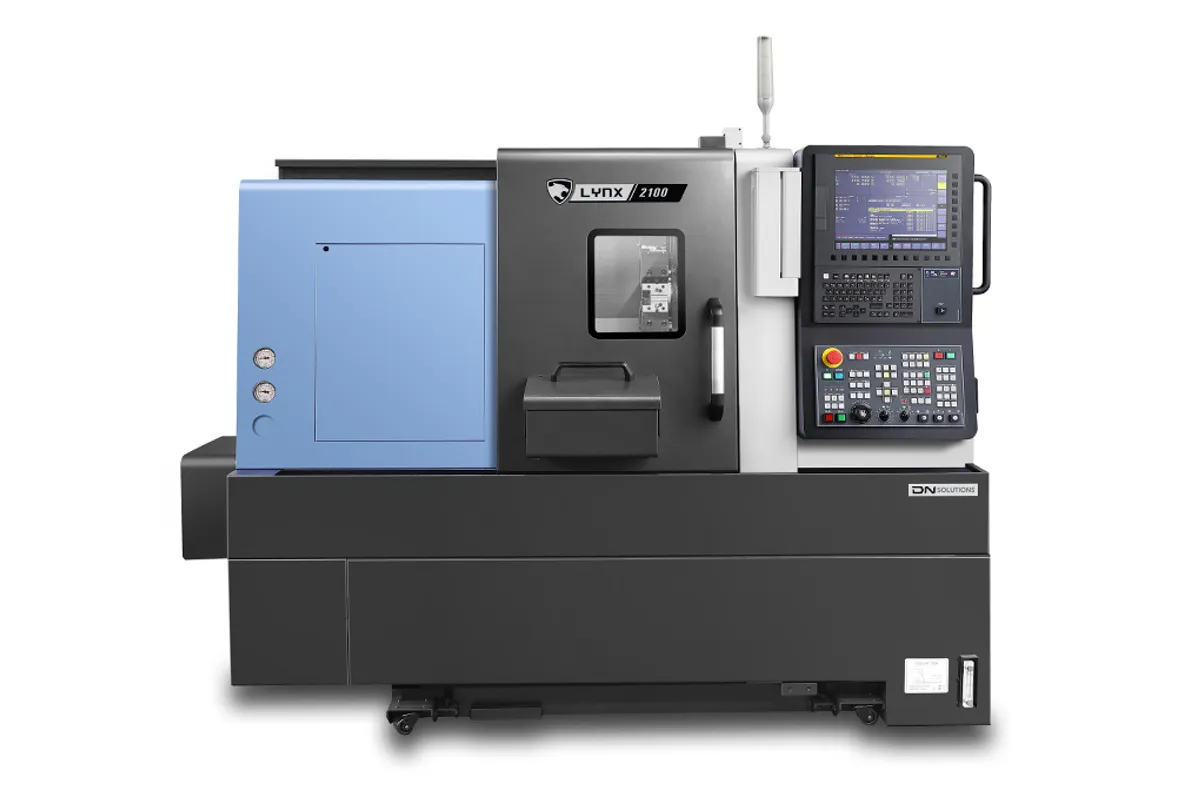

The DN Solutions LYNX 2100 A is the entry point into DN Solutions' LYNX turning center lineup — a compact 6-inch chuck, 2-axis horizontal lathe built on linear guides for speed and precision in light-to-medium duty turning work. If you need a quick, affordable CNC lathe that handles small parts with tight tolerances, this is where you start.
The main spindle runs a 6-inch chuck with 15 kW (20 hp) of power and tops out at 6,000 RPM, delivering 127 N-m (94 ft-lb) of torque. That RPM ceiling is a real advantage over the larger-chuck PUMA series when you're turning small-diameter aluminum, brass, or mild steel — you can actually hit proper surface speeds without being RPM-limited. The 12-station turret gives you plenty of tool positions for complex parts.
Max turning diameter is 350 mm (14 in) and max turning length is 330 mm (13 in), with axis travels of 205 mm on X and 340 mm on Z. Rapids hit 30 m/min on X and 36 m/min on Z, which is noticeably faster than the larger box-way PUMAs. That speed shows up in cycle times, especially on parts with lots of tool changes.
The machine weighs just 3,100 kg (6,834 lb) on a compact 2,320 mm x 1,595 mm footprint. It runs FANUC control. The LYNX 2100 A doesn't have a sub-spindle, live tooling, or Y-axis — it's a pure 2-axis turning machine. That simplicity is actually a feature: fewer things to go wrong, easier to program, and lower maintenance costs.
For shops doing prototyping, small-batch production, or high-mix work on parts under 14 inches in diameter, the LYNX 2100 A gives you a fast, accurate turning platform at a price point that's hard to beat. It's the machine that earns back its cost faster than almost anything else in the DN Solutions catalog.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 6 inch |
| Max Turning Diameter | 350 mm |
| Max Turning Length | 330 mm |
| X Axis Travel | 205 mm (8.1 in) |
| Z Axis Travel | 340 mm (13.4 in) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 36 m/min (1,417 in/min) |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15 kW (20 hp) |
| Spindle Torque | 127 N-m (94 ft-lb) |
| Turret Stations | 12 |
| Machine Length | 2,320 mm (91 in) |
| Machine Height | 1,693 mm (67 in) |
| Machine Width | 1,595 mm (63 in) |
| Machine Weight | 3,100 kg (6,834 lb) |
| CNC Control | FANUC |
| Metric | IMPERIAL |
| Capacity | Chuck sizeMax. Turning DiameterMax. Turning Length |
| Travels | X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance |
| Main Spindle | Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque |
| Turret | No. of tool station |
| Dimensions | LengthHeightWidthWeight |
| Favorites | Lynx 2600 |
Specifications sourced from dn-solutions.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 6,000 RPM spindle speed lets you reach proper surface speeds on small-diameter aluminum and brass parts where lower-RPM machines fall short
- 30/36 m/min rapid traverse rates on X/Z axes deliver fast positioning and short cycle times on high-mix work
- 12-station turret provides ample tooling for complex parts without compromising on available positions
- Compact 2,320 mm footprint and 3,100 kg weight make it easy to place in tight shop layouts without floor reinforcement
- Linear guide construction gives excellent positioning accuracy and low maintenance compared to box-way designs
- Entry-level price point in the DN Solutions lineup makes the LYNX 2100 A accessible for smaller shops and startups
- FANUC control is the industry standard — no learning curve for experienced operators
Limitations
- 6-inch chuck limits workholding for larger-diameter parts — step up to the 2100 B for an 8-inch chuck
- No live tooling, Y-axis, or sub-spindle means any milled features require a second operation on another machine
- Linear guides sacrifice some rigidity versus box-way designs for heavy interrupted cuts in tough materials
- 330 mm (13 in) max turning length is restrictive for longer shaft work — the LA variant adds 220 mm more
- 20 hp spindle motor runs out of steam on aggressive roughing cuts in stainless and hardened alloys
Best For
Frequently Asked Questions
01
The A has a 6-inch chuck with 6,000 RPM and 127 N-m torque. The B steps up to an 8-inch chuck but drops to 4,500 RPM with 169 N-m torque. Same bed, same travels, same weight. Pick the A for smaller parts where spindle speed matters, the B when you need a bigger chuck for larger workholding.
02
Both are compact 6-inch chuck lathes targeting similar work. The LYNX 2100 A has faster rapids (30/36 m/min vs 24/24), similar spindle power (20 hp), and comparable pricing. The Haas has a slightly simpler control interface. Performance is close — it often comes down to dealer proximity and brand preference.
03
Yes, bar feeder integration is a common option. The 6-inch chuck typically accommodates bar feeders for stock up to about 50-52 mm diameter depending on the spindle bore. Check the specific spindle bore specification for your machine configuration.
04
It handles mild and medium carbon steel well at reasonable feeds and depths of cut. For heavy interrupted cuts in stainless, 4140, or Inconel, a box-way PUMA series machine is a better choice. The linear guides excel at precision finishing and fast, light-to-medium cutting in most common materials.
05
New machines run $55,000-$85,000 depending on options like tailstock, chip conveyor, and parts catcher. Used LYNX 2100 A machines from 2018-2023 sell in the $25,000-$45,000 range. It's one of the most affordable production-grade CNC lathes available from a major manufacturer.
