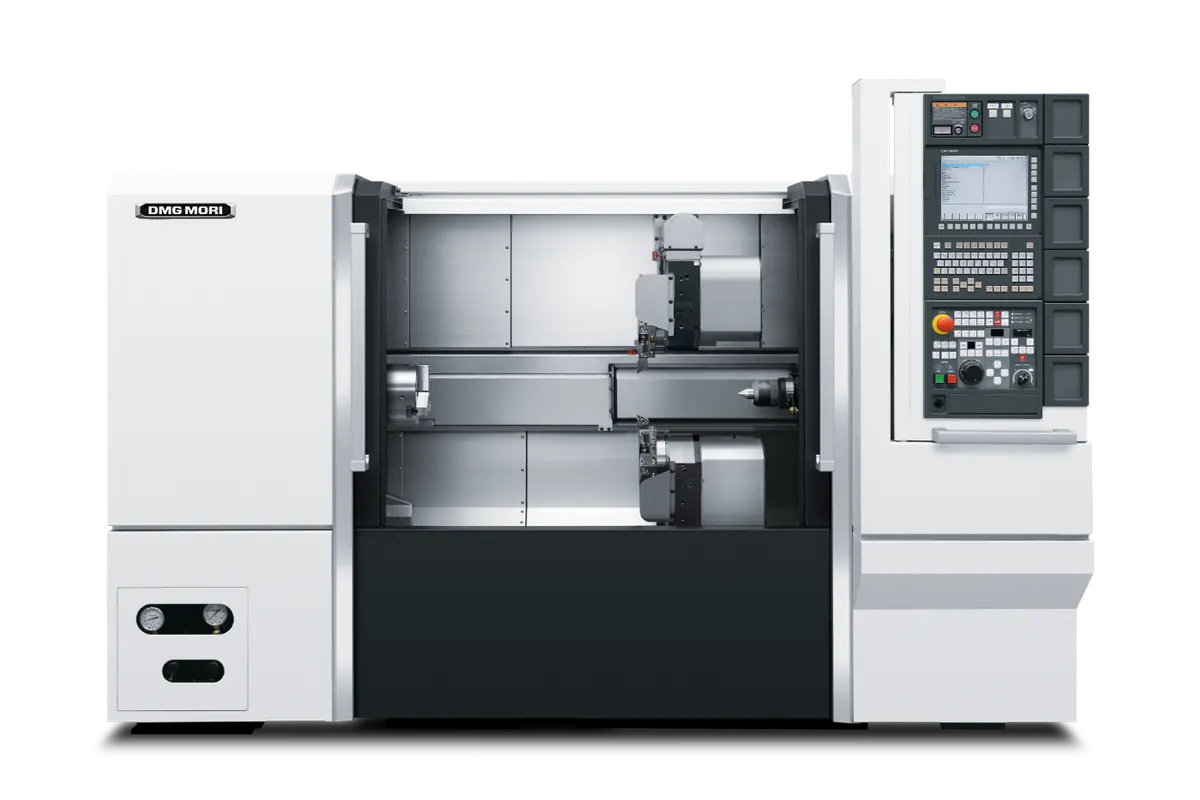

DMG Mori NZX-S 1500

$200,000 - $320,000 Updated 2026-03-19

Key Specifications

Max Spindle

6,000 RPM

Spindle Power

11 kW (15 HP)

Max Workpiece ⌀

120 mm (4.7 in)

max workpiece length

1,055 mm (41.5 in)

x axis travel

60 mm (2.4 in)

z axis travel

1,100 mm (43.3 in)

Overview

The DMG Mori NZX-S 1500 is a compact, space-efficient multi-turret turning center designed for high-productivity production turning in shops where floor space is at a premium. The "S" designation indicates a space-saving variant of the NZX platform, delivering twin-turret capability in a footprint as small as 30.1 ft2 (2.8 m2) for the 500 mm between-centers version.

The NZX-S 1500 handles workpieces up to 120 mm (4.7 in) diameter and 1,055 mm (41.5 in) length. X-axis travel is 60 mm (2.4 in) and Z-axis travel is 1,100 mm (43.3 in). Two turret positions enable simultaneous cutting operations, and both turrets support optional milling tools for cross-drilling, flats, and keyway machining.

The machine comes in two bed-length configurations: the /500 variant with approximately 500 mm between centers in a 30.1 ft2 footprint, and the /1000 variant with approximately 1,000 mm between centers in a 49.5 ft2 footprint. The machine height is 59.1 inches on the shorter variant and 63.3 inches on the longer version. This flexibility lets shops match the machine precisely to their workpiece requirements.

Control is FANUC, providing a familiar programming environment. The compact design makes the NZX-S 1500 ideal for lean manufacturing cells where multiple machines run side by side with minimal aisle space between them. The twin turrets deliver productivity gains over single-turret lathes without the floor space penalty.

New NZX-S 1500 machines price between $200,000 and $320,000. The NZX-S 1500 competes with the Nakamura-Tome SC-100, Citizen Miyano BNA-42S, and other compact twin-turret production lathes. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
Max Workpiece Diameter	120 mm (4.7 in)
Max Workpiece Length	1,055 mm (41.5 in)
X Axis Travel	60 mm (2.4 in)
Z Axis Travel	1,100 mm (43.3 in)
Turrets	2
Optional Milling	Available on both turrets
Max Spindle Speed	6,000 RPM
Spindle Motor Power	11 kW (15 HP)
Footprint 500	30.1 ft2 (2.8 m2)
Footprint 1000	49.5 ft2 (4.6 m2)
Machine Height 500	59.1 in (1,501 mm)
Machine Height 1000	63.3 in (1,608 mm)
CNC Control	FANUC
120 Mm	4.7 in.
1055 Mm	41.5 in.
60 Mm	2.4 in.
1100 Mm	43.3 in.
Customer Benefits	Functionality - Selection of the cycle by pressing the associated key on the operating panel

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

30.1 ft2 footprint on the /500 variant is among the smallest for any twin-turret CNC turning center available
Twin turrets enable simultaneous cutting operations that reduce cycle time by 30-40% versus single-turret lathes
Two bed-length options (500 mm and 1,000 mm between centers) let shops match the machine precisely to their workpiece sizes
Optional milling on both turrets enables cross-drilling, flats, and keyway machining without secondary VMC operations
FANUC control provides a familiar programming environment with excellent CAM software support
Compact design enables lean manufacturing cell layouts with multiple machines in minimal floor space

Limitations

120 mm max workpiece diameter limits the machine to smaller parts — larger work requires the NZX 2000 or NZX 2500
60 mm X-axis travel is tight, restricting facing operations on larger-diameter chucked parts
11 kW spindle power is modest — not suited for aggressive heavy roughing in stainless steel or titanium
Compact design means smaller chip evacuation area and coolant tank, requiring more frequent chip clearing on long runs

Best For

Automotive production cells running small precision turned parts where twin-turret productivity matters in minimal floor space Medical device manufacturers producing implant components and surgical instruments on compact, efficient platforms Contract manufacturing shops that need to fit maximum turning capacity into limited floor space Lean manufacturing facilities designing tight production cells with multiple machines and robotic loading Shops producing long, slender shafts up to 1,055 mm that benefit from twin-turret simultaneous cutting

Frequently Asked Questions

01 What does a new DMG Mori NZX-S 1500 cost?

New pricing runs $200,000-$320,000 depending on bed length and options. The /500 variant costs less than the /1000. Adding milling tools on both turrets, bar feeder integration, and parts catcher pushes toward the higher end.

02 NZX-S 1500 vs NZX 1500 — what is the difference?

The NZX-S 1500 is the space-saving variant with a significantly smaller footprint than the standard NZX 1500. The standard NZX 1500 offers more travel, a larger work envelope, and more flexible tooling options. Choose the NZX-S when floor space is the primary constraint.

03 Can I fit multiple NZX-S 1500 machines in a cell?

Yes. The 30.1 ft2 footprint on the /500 variant means you can fit 2-3 machines in the space one conventional twin-turret lathe would occupy. This is the primary design intent — maximum production density per square foot of floor space.

04 What bar feeder works with the NZX-S 1500?

Standard short-loading bar feeders from LNS, IEMCA, and FMB are compatible. The compact design may require a short-magazine feeder to maintain the small overall footprint. Confirm compatibility with both DMG Mori and your bar feeder supplier.
